Master the most complex 3D CAD data with the Kisters 3DViewStation

3DViewStation is not just a viewer – it is a comprehensive analysis and collaboration tool that integrates seamlessly with existing PLM, ERP and other engineering IT infrastructures. With support for over 60 native and neutral CAD formats such as Catia, NX, Creo, SolidWorks, JT, STEP and many more, it enables universal use without the need for the original CAD application.

Top performance in seconds – even with millions of components

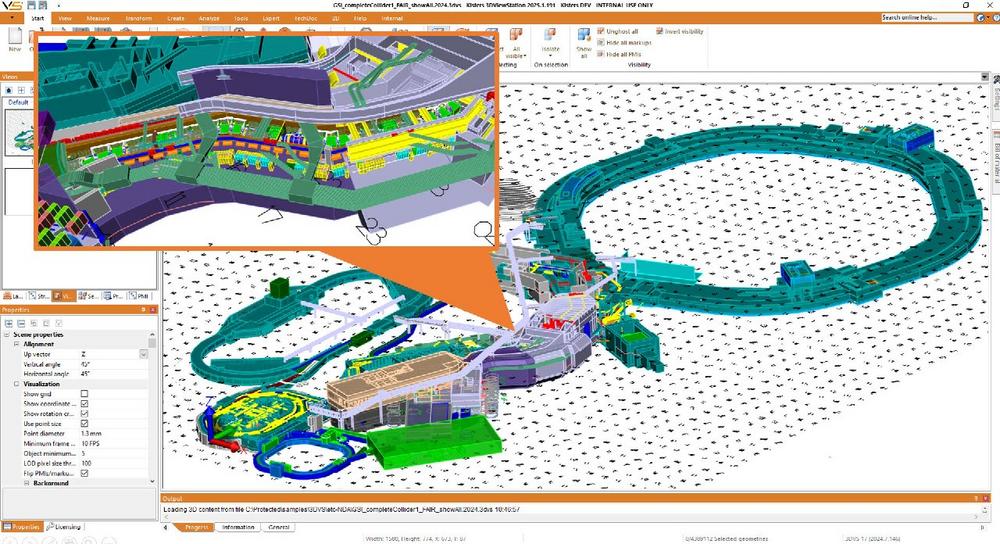

Where most systems reach their limits, the Kisters 3DViewStation impresses with impressive performance: even assemblies with several gigabytes of data volume or models with millions of components can be loaded in just a few seconds. Thanks to intelligent processing and sophisticated in-house development of a high-performance graphics engine, the software retains its responsiveness even with extremely large volumes of data.

“Our customers in the automotive, aerospace, mechanical engineering and defense industries work with highly complex models – every second counts for them. Employees want to work at their own pace and not be slowed down by waiting times, as is the norm today. With 3DViewStation, we not only enable ultra fast visualization, but also offer extremely fast navigation, selection and filter functions through to in-depth analysis functions – regardless of the CAD system,” explains Craig Impastato, sales manager at KISTERS.

Powerful analysis tools and flexible application scenarios

The Kisters 3DViewStation offers far more than just viewing 3D CAD models:

• Selection via neighborhood, attributes, names or properties
• Filters, lightning fast, incl. rule engine for complex queries
• Geometry and structure comparison for quick identification of changes
• Dimension and tolerance check (PMI), wall thickness analysis, collision check
• Measurement and dimensioning functions for self-help, e.g. if PMIs are missing
• Markup and annotation functions for change management and cross-team collaboration
• Authoring functions for creating work, maintenance and repair instructions
• Digital mockup (DMU) functions including exploded views and sectioning functions
• Automated processes such as batch conversion and previews

The software is particularly flexible thanks to its availability in different versions: as a desktop application, WebViewer (HTML5-based, without local installation), VR edition or fully integrable via an API. This makes 3DViewStation suitable for technical users as well as for sales, purchasing, customer service and management.

Enabler for digital transformation

The Kisters 3DViewStation actively supports companies in the implementation of digital transformation and MBE (Model Based Enterprise) initiatives. The centralized provision of 3D information along the entire value chain – from development to production to after-sales – accelerates processes, reduces sources of error and improves collaboration.

“Visualization is the key to digital consistency. Our 3DViewStation makes 3D CAD information extremely fast and very easy to access and use – regardless of the user’s technical background,” Impastato continues.

About 3DViewStation

KISTERS 3DViewStation is continuously enhanced in response to customer needs and requirements. It is available as a Desktop, HTML5 WebViewer and VR Edition product versions plus the online collaboration tool VisShare. All product offerings can be integrated with a PLM, ERP or other leading management system as well as service and spare part applications. KISTERS 3DViewStation provides all necessary APIs for your development team. For cloud, portal and web solutions, there is a HTML5-based WebViewer solution available, which does not require client installation. All file formats can be used in combination with the intelligent navigation and hyperlinking features to address the needs of complex integration scenarios.
