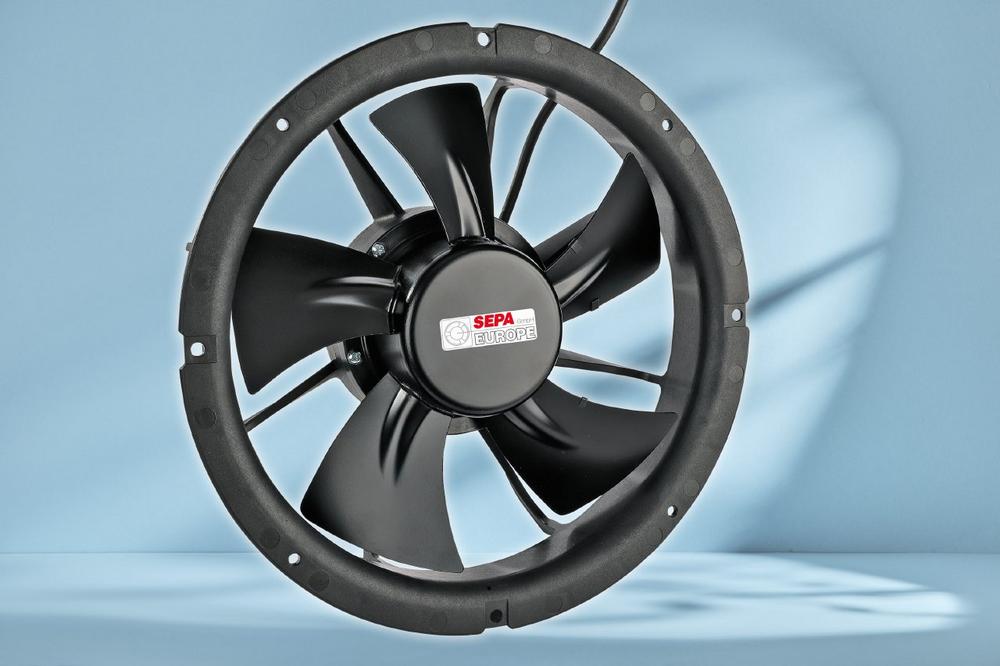

UF-T200 – EC axial fan for energy-efficient cooling

The fan with a diameter of 250 mm comprises a robust plastic housing and a metal rotor. It is classified according to the ATEX explosion protection directive. It is particularly suitable for cooling switch cabinets, controls and power electronics but is also used in machine and plant engineering. Thanks to its ATEX classification it can also be found for example, in the chemical engineering and conveying technology sector. The FG220 finger guard is an ideal accessory that is adapted to the UF-T200 and ensures a high degree of safety. The safety guard has also been aerodynamically optimized and boasts low air resistance.

Thanks to two analogue controllable speed levels of 1400 rpm and 2200 rpm, operation can be adapted as required. At 1400 rpm, the current consumption is a mere 9 watt with a flow rate of 490 m³ per hour, whereas at 2200 rpm a current consumption of 27 watt is required and a flow rate of 780 m³ per hour is achieved.

The UF-T200 EC axial fan convinces as far as reliability is concerned. The fan is designed for an operating temperature range of -25°C to +60°C and has a life span of 40000 hours (L10) or 200000 hours (MTBF) at 40°C. Despite its high performance capacity, it weighs only 1 kg making it ideal for developers who wish to incorporate compact, reliable and environmentally friendly cooling solutions into their designs.
