- Compact 24V power supply for control cabinets
The space-saving DRL-24V120W1EN DIN rail power supply from Delta Electronics delivers 120 W nominal output (24V / 5A) with an efficiency of up to 91%. With a compact width of just 30 mm, it saves valuable space on the DIN rail and simplifies integration into control cabinets. The wide input range of 90–264 VAC enables global use, while the operating temperature range of –40°C to +70°C ensures high reliability. Comprehensive protection features against short circuit, overvoltage and overtemperature guarantee safe operation. The power supply is certified according to IEC/EN/UL 62368-1 and IEC/EN/UL 61010-1. Electromagnetic compatibility meets the industrial standards EN 61000-6-4 Class B (emission) and EN 61000-6-2 (immunity).
- Intelligent DC UPS with integrated Li-Ion battery pack
The Bicker UPSI-2406DP1 protects critical systems against power failures, voltage dips and transients. Delivering 24V / 4A (96W), the UPS automatically switches to battery operation in the event of a mains failure. Certified to IEC/UL/CSA 61010-1 / -2-201, the compact DC UPS is designed for operation from 0°C to +50°C. The intelligent power-sharing function dynamically distributes input power between load and battery charging, while the battery management system with Smart Battery Lock prevents unwanted discharge and enhances operational safety. With the freely available cross-platform UPS management software „UPScom“, all parameters can be configured, system status monitored, and controlled system shutdowns or automatic reboots of connected IPCs initiated during power outages.
- Compact DIN rail Industrial PC
The GIGAIPC QBiX-DR-EHLA6412H-A1 is a powerful DIN rail industrial PC for 24/7 continuous operation in demanding industrial environments. Based on the Intel® Celeron® J6412 processor (4 cores, up to 2.6 GHz, 10 W TDP), it supports up to 32 GB DDR4 RAM. The system provides 2× Intel® Gigabit LAN, 4× USB, 4× COM, HDMI 2.0 and VGA, GPIO (8 bit) and three M.2 slots as well as a SIM slot for 4G/5G. With fanless passive cooling, 9–36 V DC wide-range input, DIN rail mounting and a rugged aluminum chassis, the IPC ensures reliable, maintenance-free operation from 0°C to +50°C. The QBiX-DR-EHLA6412H-A1 is ideal for control, monitoring and edge-computing tasks in modern Industry 4.0 applications. Bicker Elektronik also offers matching DDR4 SO-DIMM modules and M.2 SSDs with extended temperature ranges.

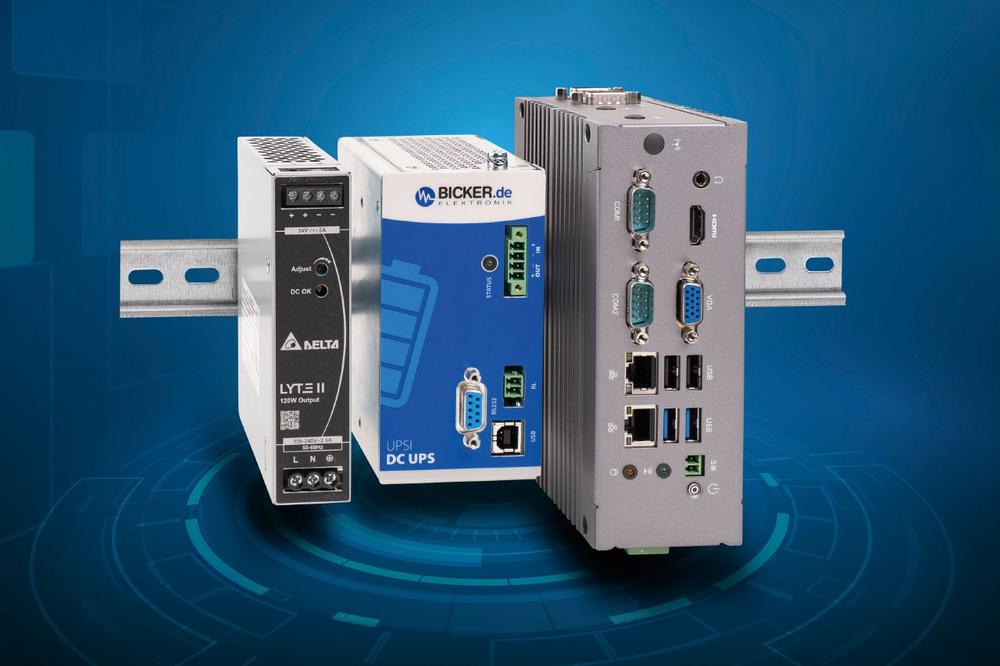

Integrated complete solution with system advantage
The Bicker DIN rail IPC bundle combines power supply, UPS protection, and an industrial PC into a single integrated solution. It ensures safe AC/DC power supply, protects critical systems from power outages, and simultaneously provides high-performance computing capacity:
- Reliable 24V DC power supply with UPS buffering
- High reliability during voltage fluctuations and blackouts
- Powerful IPC computing performance for DIN-rail mounting
- Fanless and energy-efficient operation
- Compact designs for space-saving control cabinet layouts
- Minimized wiring and integration effort
- Compliance with industrial standards
The bundle offers a practical, ready-to-use complete solution for modern production and process automation.
Product links:
Power Supply – DRL-24V120W1EN: https://www.bicker.de/en/DRL-24V120W1EN
DC UPS – UPSI-2406DP1: https://www.bicker.de/en/UPSI-2406DP1
DIN rail IPC – QBiX-DR-EHLA6412H-A1: https://www.bicker.de/en/qbix-dr-ehla6412h-a1
Bicker Elektronik GmbH, based in Donauwoerth/Germany, has been developing, manufacturing and selling power supplies and UPS systems for over 30 years. These include industrial PC power supplies, industrial and medical grade power supplies, DIN rail power supplies, DC/DC converters and modular UPS systems with durable energy storage devices (Supercaps, LiFePO4, Li-Ion or lead batteries). The portfolio is rounded off by suitable industrial motherboards from leading manufacturers such as Kontron, AAEON, ASUS IOT and Avalue. In addition, Bicker Elektronik offers suitable system components such as memory, M.2 SSD, mSATA, cooling solutions and expansion cards in industrial quality. The extensive storage at the headquarters in Donauwoerth with an online shop guarantees fast and on-time delivery. The company is TÜV certified according to ISO 9001: 2015. The target markets of Bicker Elektronik are Industry 4.0 / IIoT, automation technology, robotics, medical and laboratory technology, measurement and control technology, transportation, maritime, energy, communication and information systems, gaming, POS/POI, digital signage, security and building technology.
