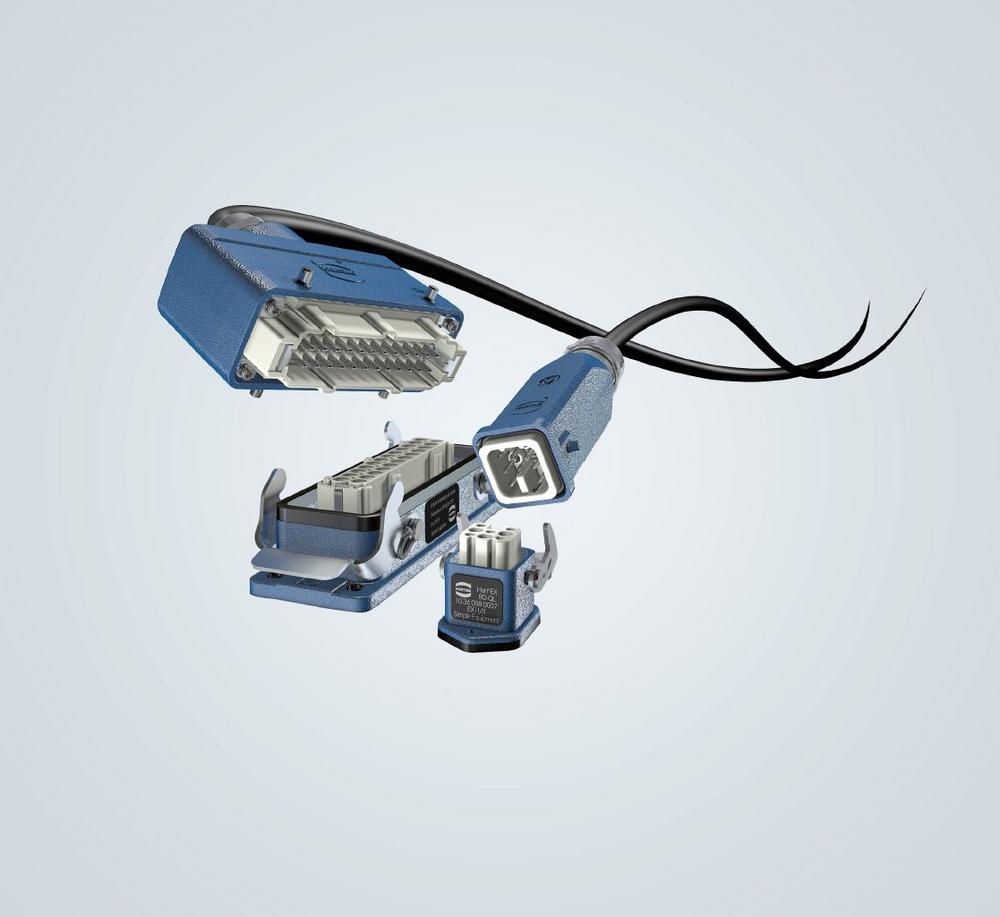

The Han® Ex series’ contact inserts provide a high number of poles in the smallest of spaces. Up to 24 contacts can be located in the size 24B housing, for example. Crimp and screw terminals as well as Han-Quick Lock® can be used for creating connections. Housings are equipped with cable outlets for thread sizes M20 to M40. Extremely robust metal locking levers are used to lock the connector and can only be released with a tool, preventing it from being opened by accident in an explosive atmosphere.
Compared to hardwiring, users of Han® Ex connectors can increase the flexibility of their application, reduce down-time to maintenance work and increase installation safety. This is particularly applicable for explosive atmospheres in the mining and chemical industries and process automation.
