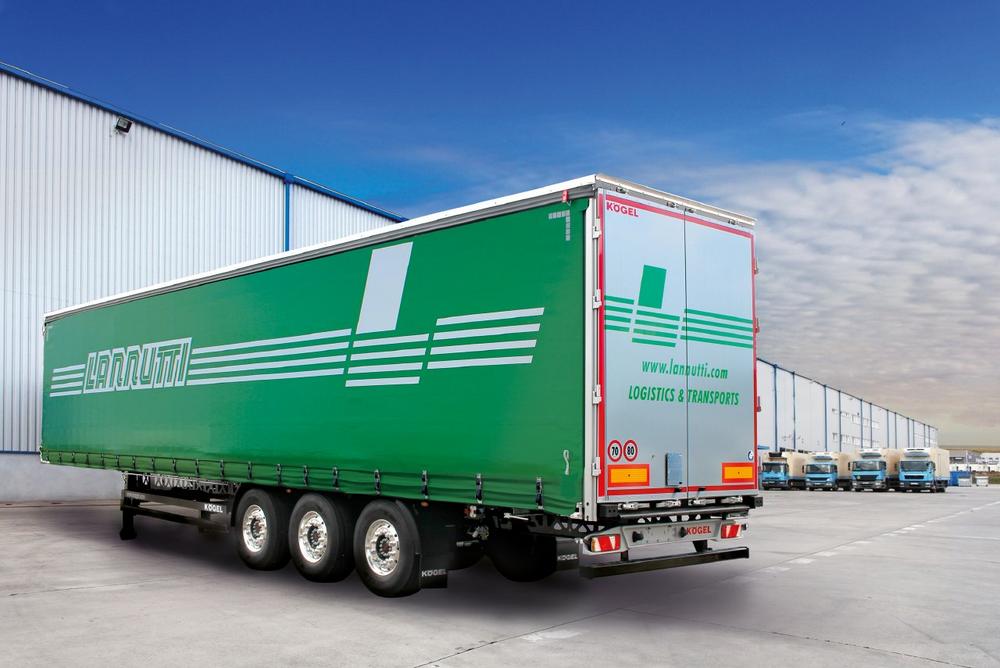

Lannutti were convinced by the high stability level of the Kögel Lightplus, as well as the option of reducing the already low tare weight of 5,145 kilograms with basic equipment even further via individual equipment. The Light plus trailers that have been ordered are fitted with the new Kögel external frame as standard. The lashing of cargo to the VarioFix perforated steel external frame is also possible with the optional drop sides. The 13 pairs of lashing rings, included as standard, have grip hooks at the sides for easier handling, and have a tensile force of 2,500 kilogrammes. The front wall, including the front bulk corner posts, the rear corner posts, and the rear wall door portal are made from aluminium. As you would expect, the Kögel Lightplus trailers have the DIN EN 12642 Code XL load-securing certificate.
A wide range of Lannutti-specific features
To further reduce the weight of the trailers, Lannutti has opted for weight-reducing individual equipment. This includes aluminium wheel rims, aluminium landing gear, aluminium air tanks, aluminium roof support frames and portal doors made of extremely light yet strong duroplastic sandwich panels with a honeycomb core, known for its use in the aerospace industry. As requested, the load-bearing capacity of the 30-millimetre-thick, bolted plate floor is designed for a fork-lift axle load of 7,200 kilograms. To protect the front wall interior from damage during loading and unloading, it is fitted with a coated steel plate with a thickness of 5 millimetres and a height of 200 millimetres, which is also bolted to the floor. The rear of the vehicles is also equipped with a pair of reinforced rubber bumpers for enhanced impact protection. This protection is rounded off by a transverse Delta rubber profile on the end plate of the frame. To avoid the usual need for aluminium or wooden slats, the trailers are fitted with a sliding tarpaulin at the sides, with 24 vertical aluminium slats per side. Other individual features include tarpaulin cables with mounts, an odometer, a toolbox and much more.
Cathodic dip-paint coating: lasting protection from corrosion
As with all Kögel vehicles for the forwarding industry, the entire vehicle frame on the Kögel Lightplus has long-term corrosion protection provided by nano cathodic dip-paint coating and subsequent painting.
Kögel is one of the leading trailer manufacturers in Europe. Since it was established in 1934, the company has manufactured more than 550,000 trailers. With its commercial vehicles and solutions for freight-forwarding companies and the construction industry, the company has been providing ‚Made in Germany‘ engineering quality for more than 80 years. During this period, it has maintained its passion for transport and innovation, enabling it to offer proven, long-lasting added value to freight-forwarding companies. The company headquarters and main production facility of Kögel Trailer GmbH & Co. KG are located in the Bavarian town of Burtenbach. Kögel also has factories and premises in Ulm (Germany), Duingen (Germany), Chocen (Czech Republic) and Moscow (Russia).
