Kögel Cargo Rail
The trailers designed for multimodal transport are equipped with a reinforced chassis frame. The gripper edges integrated into the frame, a gripper jaw tarpaulin protection and special axles in a rail design allow the Cargo Rail trailers to be loaded on rails. The new trailers are designed for the flexible loading onto the most common rail pocket wagons of type c, d, e, f, g and h. Of course, the trailers are also certified according to DIN EN 12642 Code XL and are therefore approved for transport by express freight train at speeds up to 140 km/h. The standard Kögel integral roof tarpaulin also guarantees improved handling with an open roof. Thanks to the roof straps being integrated in the roof tarpaulin, sagging straps are a thing of the past. This eliminates the straps snagging on the load.

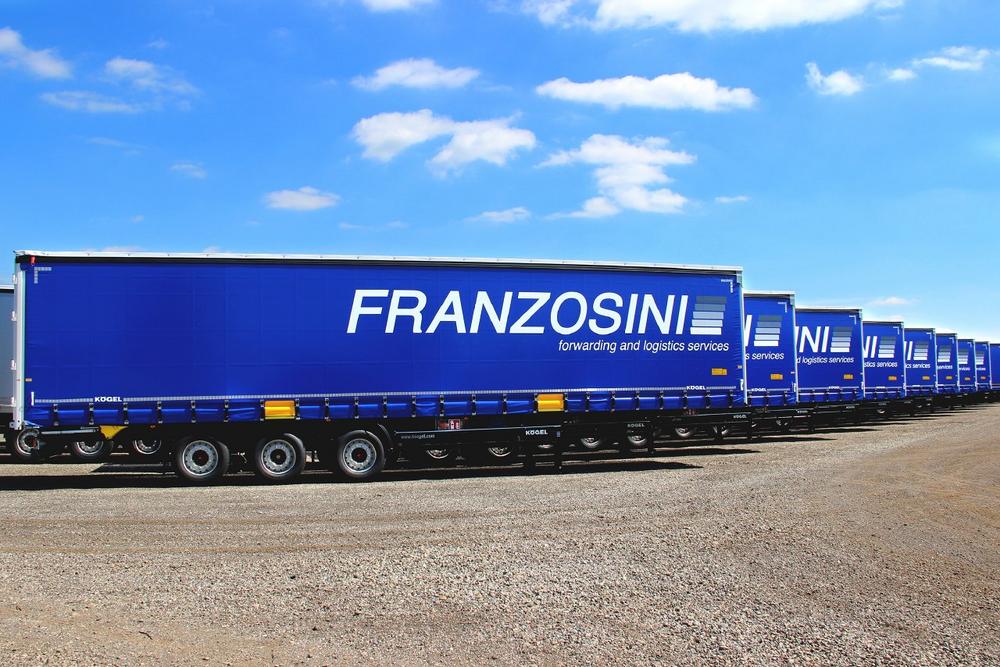

Franzosini individual equipment
In addition to the previously mentioned individual equipment, Franzosini has opted for further optional accessories. A mechanical-hydraulic lifting roof increases the lateral and rear transfer height to more than three metres. This makes loading and unloading even easier. A 720-millimetre-long transition plate, made of steel chequer plate, is mounted above the rear end beam. To protect the interior of the front wall from damage during everyday use, it has been fitted with a two-millimetre-thick steel sheet, which is 2,500 millimetre high. For enhanced impact protection, the rear of the vehicle is equipped with reinforced steel rubber bumpers. An eight-millimetre-thick lateral steel bracket, extending over the entire width, and locking cam protection, mounted centrally on the end plate of the frame, completes the trailer’s impact protection. Additional special equipment includes a fire extinguisher, a toolbox, an odometer, an axle lift for the first axle and much more.
Cathodic dip-paint coating: lasting protection from corrosion
On the Kögel Cargo Rail too, the entire vehicle frame is given long-lasting protection against corrosion by nano ceramic technology and cathodic dip-paint coating, supplemented with a coat of UV varnish.
Kögel is one of the leading trailer manufacturers in Europe. Since it was established in 1934, the company has manufactured more than 550,000 trailers. With its commercial vehicles and solutions for freight-forwarding companies and the construction industry, the company has been providing ‚Made in Germany‘ engineering quality for more than 80 years. During this period, it has maintained its passion for transport and innovation, enabling it to offer proven, long-lasting added value to freight-forwarding companies. The company headquarters and main production facility of Kögel Trailer GmbH & Co. KG are located in the Bavarian town of Burtenbach. Kögel also has factories and offices in Ulm (Germany), Duingen (Germany), Chocen (Czech Republic), Verona (Italy) and Moscow (Russia).
