Kögel introduces new NOVUM generation of trailers

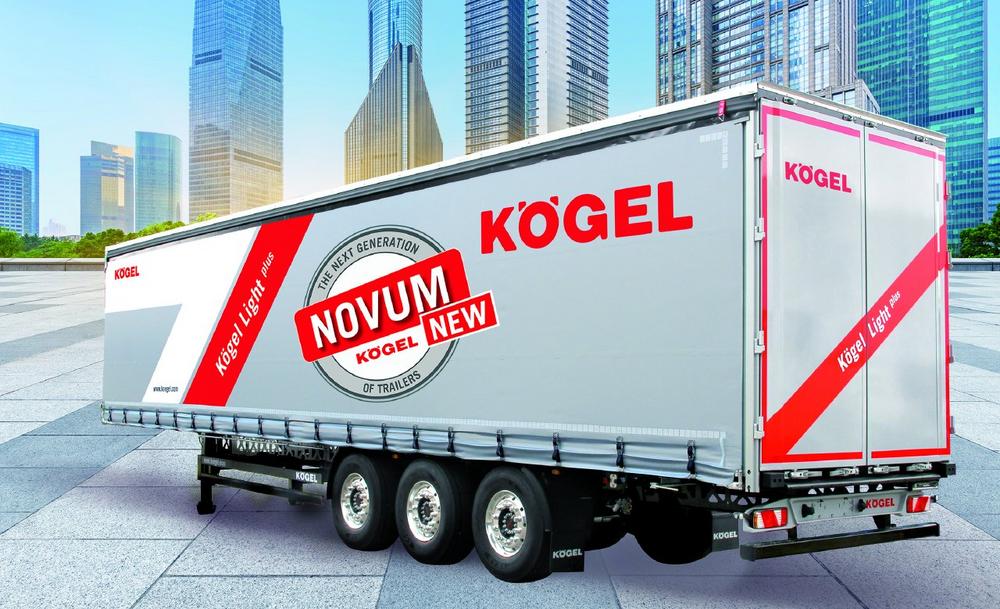

NOVUM – the new Kögel trailer generation

Frame

In future, all NOVUM generation vehicles will have a sturdy, torsion-resistant welded frame with full-width cross beams for high payloads and concentrated loads. Even more stability is provided by a new, slimmer yet stronger rear cover plate as well as the new air and lighting console on the front wall, which transfers forces along the side member to the frame. The new external frame profile greatly increases the accessibility of the VarioFix lashing points, allowing the cargo to be lashed to the VarioFix perforated steel external frame with the tarpaulin closed and also in combination with the optionally available drop sides. When using belts with claw hooks, the drop sides need to be open to attach them. The drop sides can remain closed when attaching belts with flat hooks. The 13 pairs of lashing shackles included as standard are now available with grip hooks at the sides for easier handling and have a tensile force of 2,500 or 4,000 kilogrammes respectively. Naturally, all NOVUM generation trailer frames have long-term protection from corrosion thanks to the nano ceramic technology in addition to cathodic dip-paint coating with a subsequent coat of UV varnish.

Body

In the basic design, the front wall, including the front volume corner posts, the rear corner posts, and the rear wall door portal are made of aluminium. The standardisation of the corner posts with and without a lifting roof results in the following benefits. Particularly in conjunction with a lifting roof, weight savings are made. In addition to that, it is easier to position pallets along the front wall with side loading. Furthermore, all the drop side spacing is now a standard size on NOVUM generation vehicles. This means that differently sized slats are a thing of the past. The slat pockets can be arranged flexibly using a perforated profile on the corner posts and in the slat storage console. Naturally, the new semi-trailer generation also has a DIN EN 12642 Code XL load-securing certificate.

NOVUM update

Kögel is rolling out this update gradually for all Cargo, Mega, and Light variants. The Kögel Light^plus is already available. As of March, the Cargo Coil and Cargo Coil Rail will move to the NOVUM generation. Other variants of the NOVUM generation will then be available by/as of the IAA Commercial Vehicles 2018.
