To ensure the necessary communication between tractor, equipment and agricultural management software, the non-proprietary ISOBUS is used. ISOBUS is specified in standard ISO 11783-2 and describes the BUS including the connectors used with it.
Up to now the ISOBUS-program is expanded with contacts and contact carriers which offers an extended use of larger wire cross sections. There are now three different cable versions available, which are specially designed for agricultural applications. The cable variants differ in the cross-section of the ground and power stranded wires with 6 mm², 10 mm² and 16 mm².

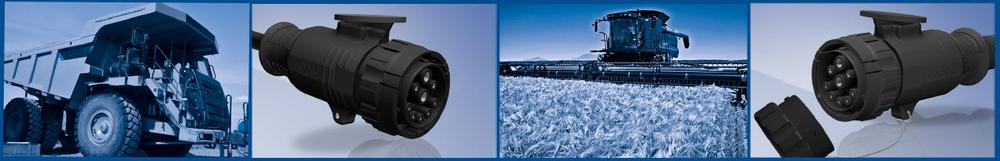

The overmoulded ISOBUS-series is available as connector with female contacts. The contact carrier has the 9-pin contact layout specified by the standard ISO 11783-2. Due to the overmould, continuous IP67 protection of the housing up to the hybrid cable is ensured.
The ISOBUS connector is plugged into the so-called IBBC socket on the tractor. In the IBBC socket, the bayonet coupling is disabled and the connector is locked by means of a spring bracket. The spring bracket serves to secure the inserted ISOBUS connector. At the same time, it fulfills the "breakaway" function, which guarantees defined opening of the bracket in case of sudden pulling force on the cable.
In unmated condition the connector is protected by a cap against dust and humidity. This cap fulfills the protection grade IP67. By default the cap is secured to the connector with a stainless steel lanyard.
When not plugged in, the IBBC socket is protected from moisture and dirt by a protective cap with integrated seal. The ISOBUS connector is equipped with a landing plate to protect the sealing of the protective cap even when plugged in. The standard version of the landing plate is round, optionally there is also a landing plate with a flattened outer surface on both sides. Upon request, the connector can also be supplied complete without landing plate.
• Robust and ergonomic design
• Version with or without landing plate
• Three cable types available
• Standard with captive dust cap
• Due to the overmould, continuous IP67 protection of the housing
up to the hybrid cable is ensured
• Use in harsh environments
Fields of application:
• Agricultural machines
• Construction machines
• Technical emergency vehicles
• Process control
