The Industrial PC Power Supply BEA-550K is the new flagship of worldwide used BEA power supply series from Bicker Elektronik, Donauwoerth/Germany. The highly efficient and very robust 500 Watt IPC power supply impresses with uncompromising quality and longevity. The BEA-550K is ideally suited for use in harsh industrial environments with an extended temperature range of -10°C to +70°C. The energy-saving power supply topology complies with 80PLUS® Platinum specification and achieves a high efficiency of more than 92%. All ATX outputs of the BEA-550K (+3.3V, +5V, +12V, +12V, -12V and +5Vsb) do not require a minimum load, so latest generation mainboards with special power-saving modes (Intel® Haswell, Skylake or Kaby Lake processors) can be supplied safely. The BEA-550K is used wherever high-performance ATX computer systems need to operate reliably in 24/7 continuous operation for many years, even under increased disruptive conditions – thus contributing significantly to safe operation of systems and machines. The BEA-550K complies with standards for increased immunity to interference for industrial areas EN61000-6-2 and for interference emission for industrial areas EN61000-6-4.

The exceptionally high quality of the BEA-550K is based on consistent use of high-quality components and the continuous development of the power supply design in terms of energy efficiency and resistance. For example, Japanese brand capacitors of +105°C rating improve durability of the power supply – even at high operating temperatures. Mechanically, the FR4 board material used has a considerably high dimensional stability. The through-hole plating of the printed circuit board ensures long-lasting and stable solder joints (shock and vibration IEC60068-2-64). A safety bracket secures the AC power cord plug into the power supply input jack, preventing it from being pulled out accidentally. The matching 3-pin AC power cable X1-132 with IEC connector is available as an optional accessory.

The new BEA-550K switching power supply for worldwide use has a wide-range input 90 to 264 VAC (47 – 63 Hz) with active power factor correction (PFC) and is certified to IEC / EN / UL 60950-1 and CCC. Due to the very good electromagnetic compatibility (EMC) the BEA-550K fulfills the stricter class B of EN55032. The intricate arrangement of power components and optimized thermal airflow management ensure the very efficient and safe operation of the PS/2 ATX power supply. The double-ball bearing brand fan is particularly quiet and additionally equipped with a tacho signal monitoring, which ensures the correct fan operation at any time. At the precisely regulated outputs, integrated short-circuit, overcurrent and overvoltage protection functions ensure additional operational safety. In addition to a long-term availability of at least 5 years, Bicker Elektronik grants a three year warranty on the BEA-550K.

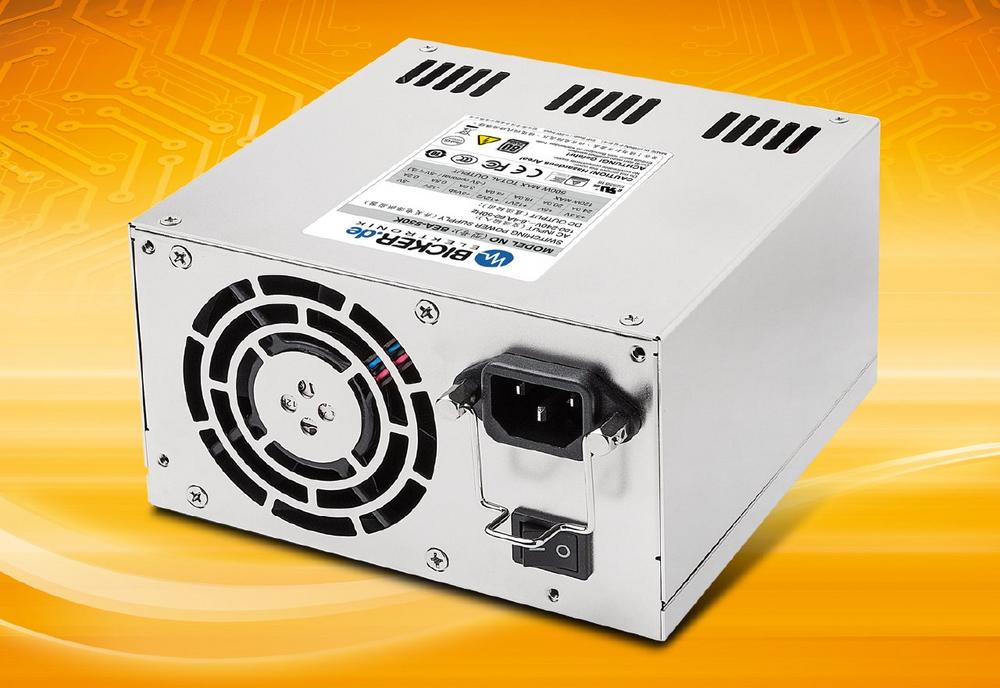

Bicker BEA-550K
All product features at a glance

  • 500 Watt Industrial PC Power Supply 80PLUS® Platinum
  • High quality premium components
  • High efficiency >92%
  • Certified to IEC / EN / UL 60950-1 and CCC
  • Increased immunity EN61000-6-2 / EN61000-6-4
  • Exactly regulated ATX output voltages
  • No minimum load required on all outputs
  • Extended temperature range -10…+70°C
  • Optimized thermal airflow management
  • Standby consumption <0.5 watts
  • ErP Lot 6 2013 ready
  • Shock and vibration tested (IEC60068-2-64)
  • Ball-bearing and temperature-controlled fan with tacho signal monitoring
  • Suitable for 24/7 continuous operation
  • Long-term availability at least 5 years
  • 3 years warranty

Direct link to BEA-550K:
https://www.bicker.de/index.php/eng/Products/Industrial-PC-PSUs/AC-input/BEA-550K



Über die Bicker Elektronik GmbH

Founded in 1994, Bicker Elektronik GmbH develops, manufactures and distributes power supplies, UPS systems and system components. The company is TÜV certified according to ISO 9001: 2015 and focuses with its product portfolio on high-quality power solutions and system components for the areas of industrial automation, medical technology, transport, maritime, communication and information systems as well as infotainment and gaming. The PowerSolutions division includes not only power supplies in the classic sense, but also encapsulated power modules, DC/DC converters, DIN rail power supplies and uninterruptible power supplies (UPS) with DC or AC input. The power range of these products is between 3 W and 10,000 W. The product portfolio of Bicker Elektronik is rounded off by suitable industrial mainboards of the manufacturers Fujitsu, ASRock, Perfectron and Avalue as part of the Power+Board program. In addition to the documented lab tests of the power supply + mainboard bundles, the Power+Board services also include personal on-site consulting, product presentation, design-in support, tailor-made system solutions for industrial and medical technology, training and competent technical support. In addition, Bicker Elektronik offers suitable processors, memory, expansion cards and mass storage in industrial quality. This means that all core components can be conveniently accessed from a single source.
