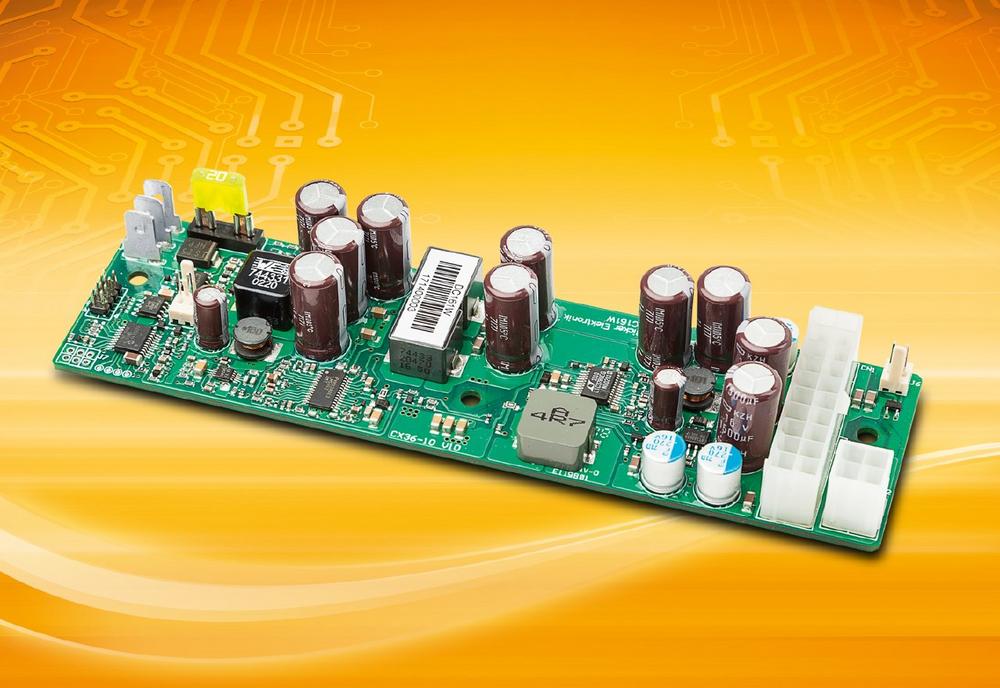

To ensure an optimal thermal connection of the power components on the underside of the board to the computer housing, the DC161W comes with a matching heat-conducting pad and an additional mounting hole in the middle of the board. Due to the very good thermal management, the heating of the DC161W is reduced to a minimum, making maintenance-free systems without rotating fans possible. A reverse polarity protection at the input, short-circuit and overvoltage protection at all outputs and an over-temperature protection provide additional operational safety. In addition to the direct DC power supply, Bicker Elektronik offers a range of high-quality and fanless AC/DC open-frame switching power supplies for AC power supply of the DC161W as well as energy-saving external AC/DC power supplies with industrial and medical approvals.
The new DC161W can be operated both in standard power supply mode and in vehicle mode, for example for CarPCs. The ignition-dependent ATX power supply as well as start and shutdown of the supplied CarPC can be individually configured via extended timing modes and a mainboard on/off connection (Intel® ATX 12V compatible). The selectable auto-latch feature ensures, for example, safe startup and shutdown of the CarPC, even with a very short ignition boost. The integrated deep discharge protection constantly monitors the voltage of the vehicle battery and switches off the DC161W automatically as soon as the battery voltage falls below a defined threshold for more than one minute. In addition, the DC161W has a remote on/off connector for the car amplifier to turn it off in time to prevent audible feedback during CarPC system startup. At the outputs (+ 3.3V, + 5V, + 12V, -12V, + 5V-Standby) no base load is required, so that latest mainboards with special energy-saving modes can be safely supplied.
Available optional accessories for DC161W include the DC input cable PSZ-1030, the pluggable ATX/P4 harnesses CB-DC100W, CB-DC120W-P4 and PSZ-1041, and the compact EMC filter module PSZ-1040. For connection between DC161W and mainboard the two-pole connection cable PSZ-1020 is available. Bicker Elektronik grants a three-year warranty on the DC161W, as well as a long-term availability of at least 5 years. In addition, Bicker Elektronik offers comprehensive value added services, especially for system developers. These include personal on-site consulting during the design-in process by experienced sales engineers and subsequent project support by the sales, development and service teams of Bicker Elektronik. As part of the Power+Board program, Bicker Elektronik customers receive tested and perfectly matching PSU + Mainboard bundles plus comprehensive industrial-grade accessories from a single source. On request, the specialists from Bicker Elektronik realize customer-specific special solutions and also offer extensive laboratory and measuring services for complete customer systems.
All product features at a glance
- ATX DC-DC converter
- Ultra wide input range 6…36 VDC
- Extended temperature range -20…+70°C
- Efficiency up to 93%
- With car ignition function
- No base load required
- Cable management system
- POWER_ON and POWER_OK meet Intel® ATX 12V design guide requirements
- Highest reliability and service life thanks to high-quality components
- Suitable for 24/7 continuous operation
- Long-term availability at least 5 years
- 3 years warranty
Direct link to product DC161W:
Founded in 1994, Bicker Elektronik GmbH develops, manufactures and distributes power supplies, UPS systems and system components. The company is TÜV certified according to ISO 9001: 2015 and focuses with its product portfolio on high-quality power solutions and system components for the areas of industrial automation, medical technology, transport, maritime, communication and information systems as well as infotainment and gaming. The PowerSolutions division includes not only power supplies in the classic sense, but also encapsulated power modules, DC/DC converters, DIN rail power supplies and uninterruptible power supplies (UPS) with DC or AC input. The power range of these products is between 3 W and 10,000 W. The product portfolio of Bicker Elektronik is rounded off by suitable industrial mainboards of the manufacturers Fujitsu, ASRock, Perfectron and Avalue as part of the Power+Board program. In addition to the documented lab tests of the power supply + mainboard bundles, the Power+Board services also include personal on-site consulting, product presentation, design-in support, tailor-made system solutions for industrial and medical technology, training and competent technical support. In addition, Bicker Elektronik offers suitable processors, memory, expansion cards and mass storage in industrial quality. This means that all core components can be conveniently accessed from a single source.
