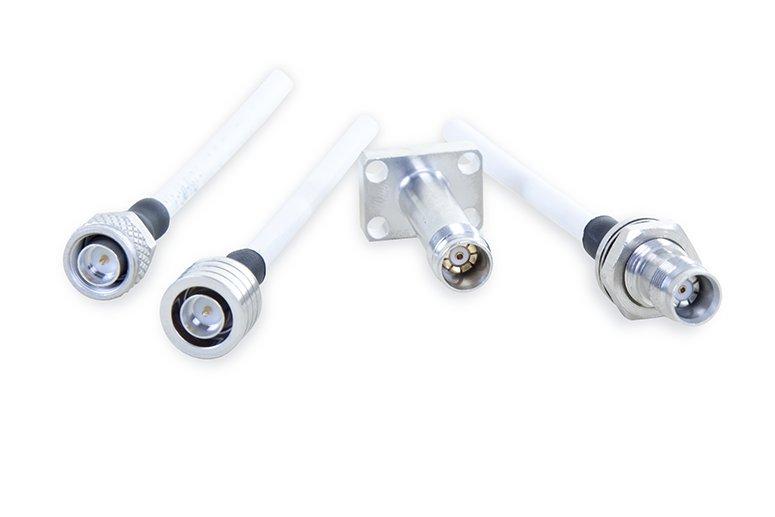

This results in the need for a connector that has been specially developed for radios and antennas with smaller footprints and offers excellent passive intermodulation, return loss and RF characteristics. The solution is a small, high-performance RF connector series. EDD® has been designed by IMS Connector Systems to meet the present and future requirements of Small Cells and 5G networks and antennas. The EDD® series is characterized by its robust design, compact size, with a maximum flange height of only 12.7 mm, and very low PIM-values.
In contrast to previous connector series the PIM-stable EDD® combines the compact size needed for radios and filters in Small Cells und Macro Cells, and Distributed-Antenna-Systems (DAS) with the robustness that is a requirement for connectors in harsh environment. The compact size of EDD® is 55 % smaller than the 4.3-10 and 68 % smaller than the 7/16 connector, nevertheless all indoor and outdoor RF connector specifications are met.
The EDD® series has bees developed primarily for applications that require high PIM stability with low space. These are among others
- Radios and filters in Small Cells
- Radios and filters in Macro Cells
- Distributed-Antenna-Systems (DAS)
- In-building antennas
- Higher-Order-MIMO antennas
- Antenna-connector solutions.
IMS Connector Systems is an international technology company that is specialised in the development and manufacture of high-frequency connection technology. The range of products encompasses a great selection of coaxial RF-Plug connectors, coaxial cable assemblies, RF-test-switches, RF-antenna switches, test adapters and test cables, battery contacts as well as antennas for mobile devices.
Our Portfolio also includes the innovative Quick Lock connectors, SnapN, MedEasyLock and the newly developed 4.3-10 connector series. For automotive applications IMS CS provides the connector series SMBA®, complying with the standard for a uniform connector system established by FAKRA (Automotive Expert Group). In addition we are able to offer our extensive High Speed Data (HSD) portfolio. Essential for the success of IMS CS is our orientation to customers and markets, individual technical support worldwide, continuous innovation and high quality standards.
Furthermore IMS CS owns high competence and experience in research and development. We offer our customers customized RF solutions for individual applications.
