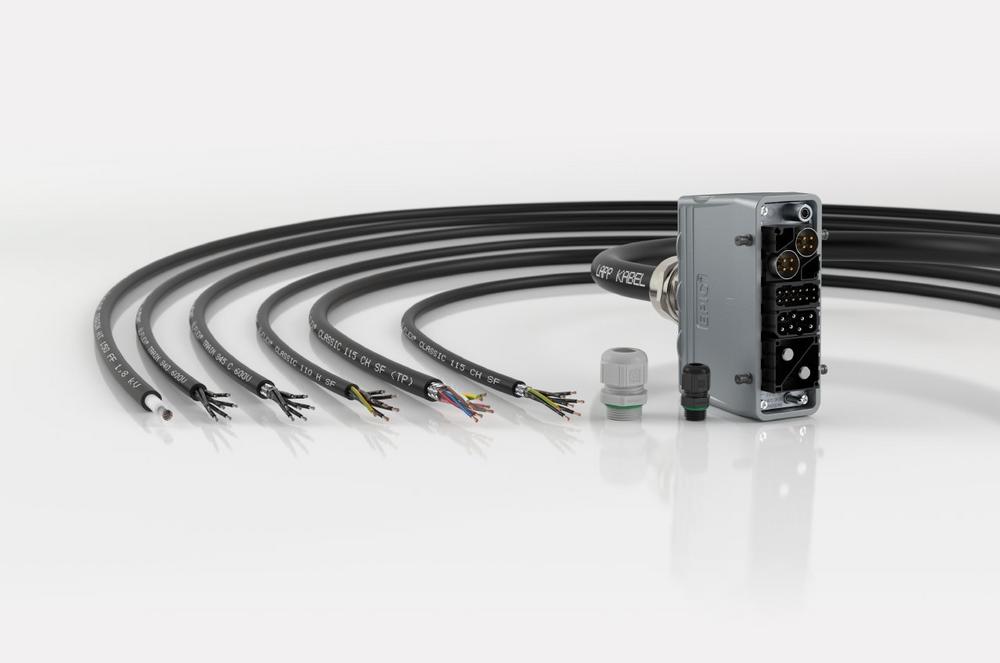

- ÖLFLEX CLASSIC 110H SF: This control cable is the workhorse of the LAPP portfolio. After being used successfully in factories in countless variants, the cable is now also available for trains. Here, it can be used to power doors, lighting or air conditioning systems. With its Class 6 conductors, the new variant is extremely flexible, allowing for installation in tight spaces. Further variants include the shielded ÖLFLEX CLASSIC 115 CH SF and ÖLFLEX CLASSIC 115 CH SF (TP). The latter features a twisted-pair design that makes it suitable for entertainment systems or transferring data to a driver’s control panel. Just like all of LAPP’s cables for the rail industry, the new products meet the requirements for fire protection in rail vehicles as per EN 45545-2.
- ÖLFLEX TRAIN HT150: This single-core silicon cable is designed for use at high temperatures and can withstand up to 150°C. Possible applications include engines or power converters. The cable is rated at Hazard Level 3, the highest hazard level for fire protection. It is also certified to EN 50382-2 for the construction of silicone cables. It is available in cross-sections of 1.5 mm2 to 400 mm2 with 1.8 kV or 3.6 kV. It features a two-layer sheath with silicone insulation, and is also available with a single-layer sheath and Class 6 conductors. This makes it flexible and suitable for installation in positions with tight bending radii.
- ÖLFLEX TRAIN 340 and ÖLFLEX TRAIN 345C: LAPP has significantly expanded its tried-and-tested range of power and control cables to meet the high demands of the rail sector in line with EN 50264-3-2. These cables are now available in cross-sections of 0.5 mm2 to 50 mm2 and with between two and 40 cores. They are suitable for various purposes, including outdoor installation, as their black sheath resists UV light. These products also withstand high temperatures, oil and fuel, and are certified to EN 45545-2.
Power and control cables are not the only products LAPP sells to the rail industry. The company also offers the complete range of data connection technology and is constantly expanding its range of connectors and system products, such as cable glands, cable inlets and cable protection systems as well as labelling solutions and tools.
- Also new to the range and approved in line with DIN EN 45545-2 is the SKINTOP ST-HF-M in black with increased UV resistance for outdoor use. In addition to vibration protection, optimum strain relief and oil resistance, which all result from the tried-and-tested high functional safety, the plastic glands in the SKINTOP ST-HF-M series are approved for use in the rail industry in line with EN 45545-2 (Hazard Level 3). All materials, including the seals, are also 100% halogen-free. In addition to the light grey design for interior applications, there is now a black version with improved UV resistance for outdoor use.
- The brass glands in the SKINTOP MS-HF-M series fulfil the strictest requirements in line with EN 45545-2 (Hazard Level 3) and EN 45545-3 (E30 fire resistance).
- They are available with a shield contact spring as SKINTOP MS-HF-M SC or with a brush insert as SKINTOP MS-HF-M BRUSH in EMC applications for shielded ÖLFLEX TRAIN cables.
- SKINTOP MS-HF-M GRIP is highly suitable where extreme strain relief is also required – the double clamp ensures additional centred strain relief and improved bending protection.
Numerous EPIC rectangular connectors are also suitable and approved for the special requirements of the rail industry.
- The EPIC MH modular connector system, for example, also fulfils EN 45545-2 requirements, is highly resistant and is very quick to assemble. The fixed frame enables one module after the other to be simply locked in place, so EPIC MH is pluggable, even with standard products on the market. When connecting cables in the EPIC MH system, LAPP relies on crimp contacts, which are highly vibration-proof and thus offer a very important advantage for the rail industry in comparison to screwed contacts. Another special feature of the EPIC MH is the gigabit module for connecting Etherline Cat. 7 cables to facilitate ultra-high-speed data transmission in modern trains.
Headquartered in Stuttgart, Germany, LAPP is a leading supplier of integrated solutions and branded products in the field of cable and connection technology. The company’s portfolio includes standard and highly flexible cables, industrial connectors and cable entry systems, customized system solutions, automation technology and robotics solutions for the intelligent factory of the future, as well as technical accessories. LAPP’s core market is in the industrial machinery and plant engineering sector. Other key markets are in the food industry as well as the energy and the mobility sector.
LAPP has remained in continuous family ownership since it was founded in 1959. In the 2016/17 business year, it generated consolidated revenue of 1,027 million euros. LAPP currently employs approximately 3,770 people across the world, has 17 production sites and around 40 sales companies. It also works in cooperation with around 100 foreign representatives.
