In addition to the KGE series, JAKOB Antriebstechnik offers perfectly matched coupling solutions for all current gear unit series – from metal bellows couplings and flange couplings to torsionally rigid safety couplings.
By means of a modern micro-plasma welding process, reliable and permanent connections between metal bellows and stainless steel or steel hubs with reproducible quality are created. The welded connection meets the highest requirements, especially with regard to absolute backlash, high concentricity and maximum torsional rigidity.
In contrast to adhesive joints, it is absolutely and indefinitely fatigue-resistant even under critical operating conditions (-50 to + 300 ° C, chemicals).

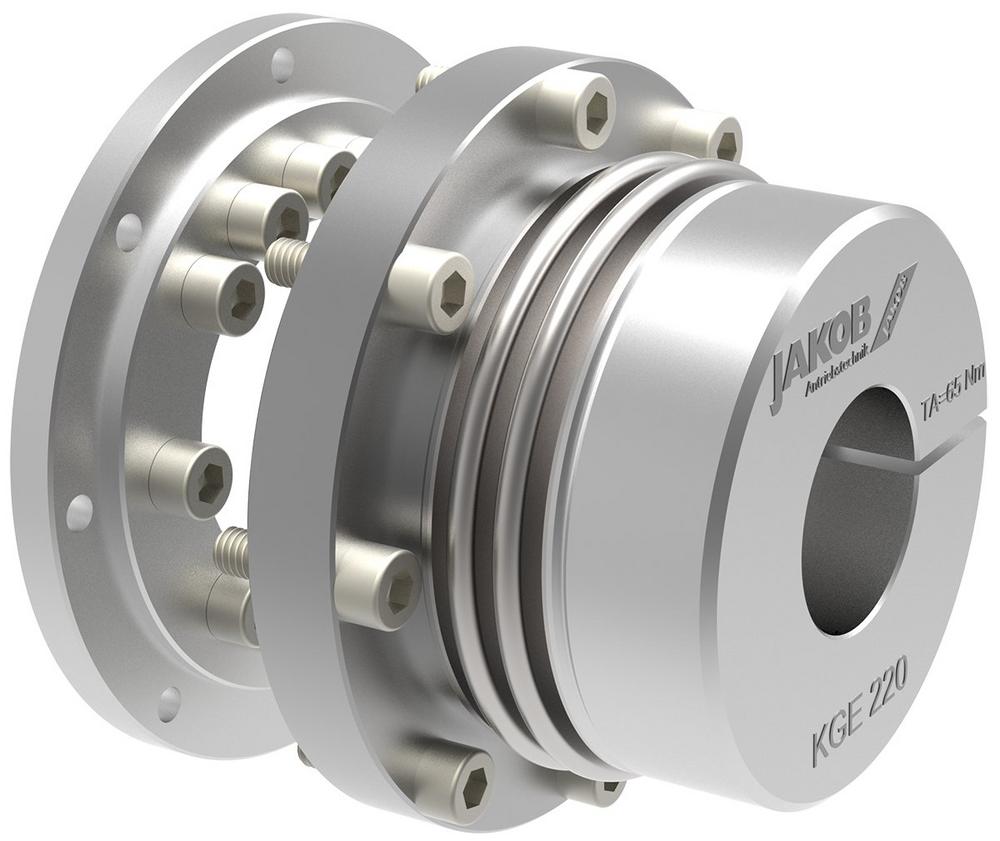

– for standardized flange connection DIN – EN – ISO 9409 – 1
– two-piece connection flange
– compact dimensions
– robust all-metal design
– on the output side with easy-to-mount EASY clamping hub
