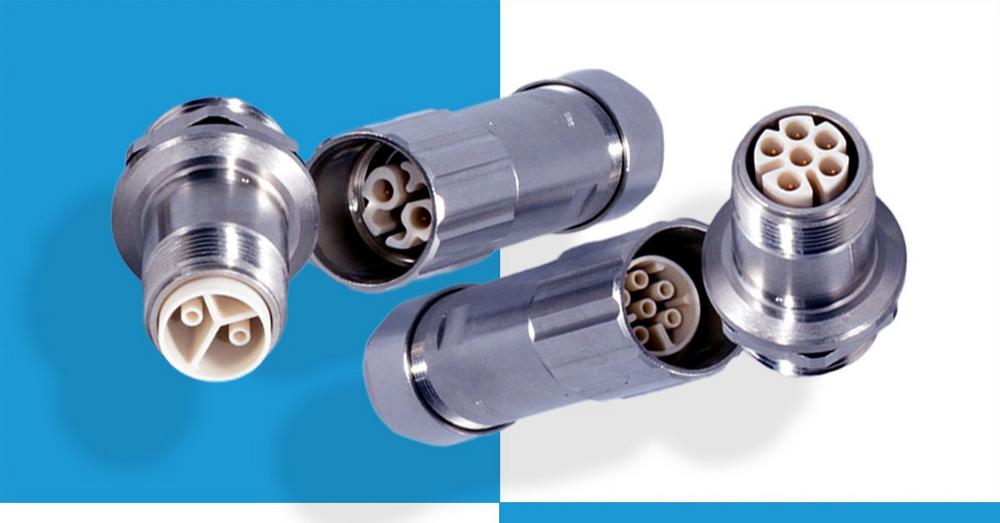

Series MCS high voltage connectors are available in various pin configurations for operating voltages of up to 5 kVDC and current of up to 4.5 A. The insulation material used is glass fibre reinforced PBT according to flammability class UL94 V-0 while the robust nickel-coated brass-housing complies with protection class IP68 (mated condition). Series MCS HV connectors are equipped with gold-plated 0.7 mm contacts for AWG 26-22 (0.15-0.38 mm²). Both sides of the connection can either be cable or panel-mounted.
GES High Voltage, Inc. is a manufacturer of premium high voltage connectors ranging from 1 kV to 100 kV (DC) operating voltages. Located in the United States and in Germany (HQ) the company offers a large variety of high voltage connectors as well as customizations and modifications for a wide range of applications from semiconductor equipment to particle physics. For more than three decades GES has been a worldwide proven and reliable partner providing well-engineered and durable products favored for sensitive applications in industry and science.
