Versatile Heater for Enclosures

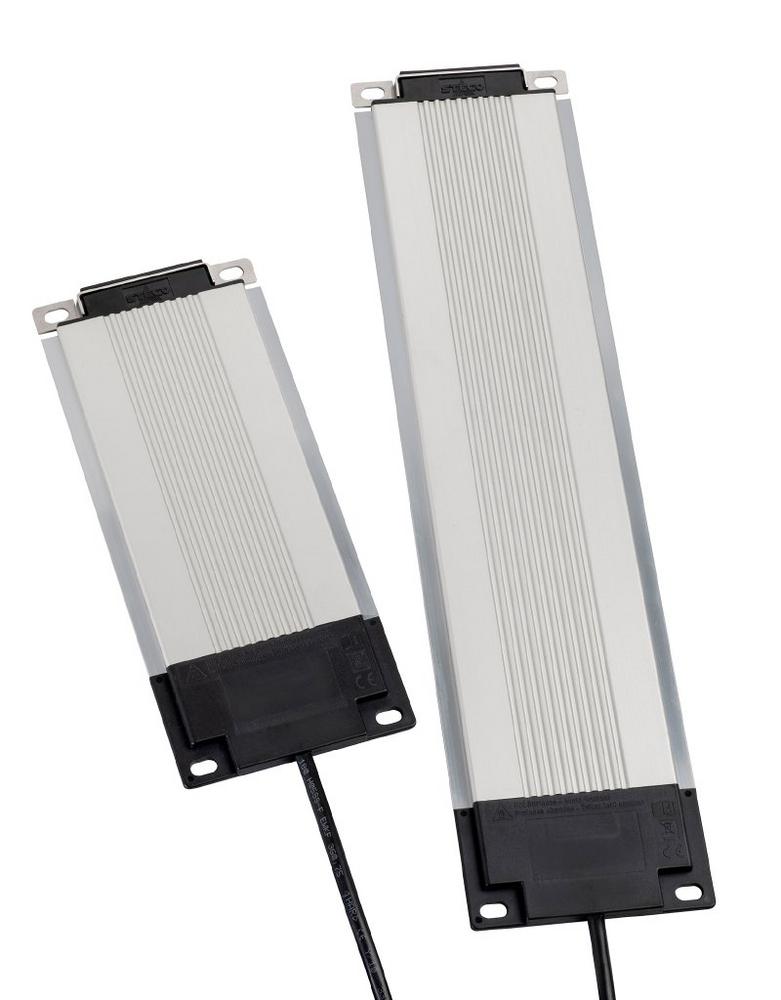

Humidity in enclosures caused by temperature fluctuations, is a threat to sensitive electrical and electronic installations. Increasing the temperature in enclosures is the most effective countermeasure. The Flat Heater CP 061 is a solution, especially in densely equipped enclosures. Space-saving design was a top priority for Stego’s developers when designing the CP 061. Therefore, focusing on a flat design of the heater body was key. An extruded aluminium profile with a rectangular cross-section of 100 mm width by 8 mm height serves as raw material for the heater body. By varying the length of the heater body, users are given a choice between two heating capacities: 50 W (length 239 mm) and 100 W (length 414 mm). The CP 061 integrates well into enclosures and cabinets giving users the choice for the installation as a contact or convection heater. The heating element is a resistance heater.

Best practice for space-saving is the attachment to the cabinet or enclosure wall; with only 8 mm in height the ultra-flat heater fits in almost any gap. In addition to cabinet walls, even the door is a possible option when in need for a particularly space-saving location. The maximum surface temperature of the heater body reaches 150° C and thus ensures effective contact heating. A specially developed mounting system compensates for expansions of the heater body. As a result, the flexible suspension prevents the heater body from deforming, thus avoiding a cabinet wall from warping. Solid surface contact is required for effective heating. Operated as a convection heater, the CP 061 warms up ambient air within the installation space. The required space for the placement of the heater is minimal, even in this mode of use.

Borehole spacing of the Flat Heater was optimised for enclosure frame profiles with a pitch of 25 mm. The CP 061 is ready for connection with a strain relief by default. An integrated safety cut-out provides for protection against overheating in case of a malfunction. This safeguards the device against critical temperatures by switching off at a critical temperature. When cooled down, an automatic switchback sets the CP 061 operational again. A practical feature for continuous operation, which the Flat Heater CP 061 is designed for.
