Limitless Scanning with Ups and Downs

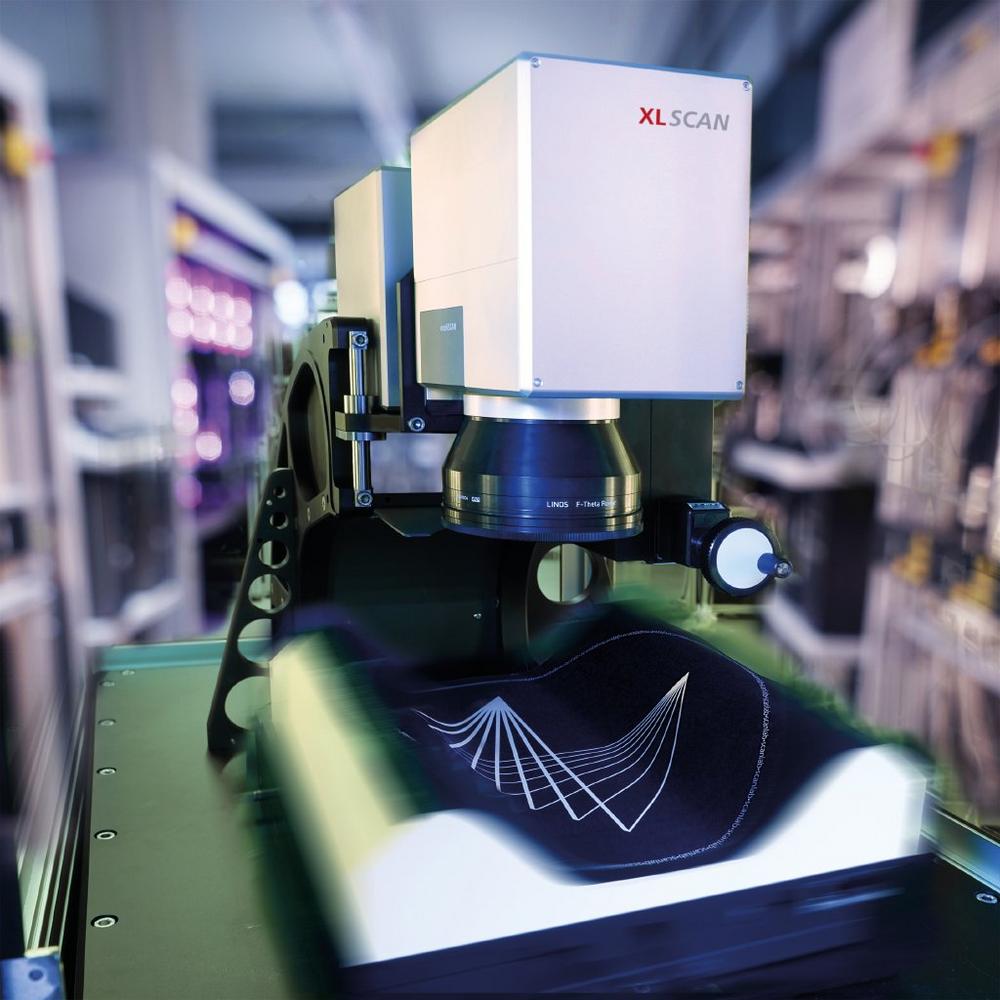

Numerous laser processing applications are constrained by the scan system’s image field size. Large workpieces thus typically require stepwise processing of individual surface sections. But this approach produces relatively long process times and bears the risk of stitching errors. To eliminate those shortcomings, SCANLAB and ACS Motion Control designed the XL SCAN. This scan solution synchronizes one or multiple excelliSCAN scan heads and one or two mechanical XY stages, each with two servo axes. That turns the system into a highly dynamic scan solution for micromachining large workpieces at maximum accuracy.

An XL SCAN will be shown at the Munich tradeshow for the first time with an integrated excelliSHIFT z axis. Because this galvo-based z axis works completely without transmissive elements, it keeps up with the scan head’s fast dynamic performance and flexibly guides the laser spot. This will allow users to precisely process even 3D-shaped large-area workpieces. The user simply inputs the desired three-dimensional contour and can even let processing be simulated beforehand. Possible example applications include processing of windshields and surface structuring of mould tools. Initial test systems with integrated z axes will be deliverable starting in 2020.

About ACS Motion Control:
ACS Motion Control is a global company providing EtherCAT network based high performance machine control systems for motion centric applications. Since 1985, ACS Motion Control has provided state of the art control solutions to world leading manufacturers.
