PD11KS Serie – 3,5″ CPU Board mit Kaby Lake /Skylake SoC

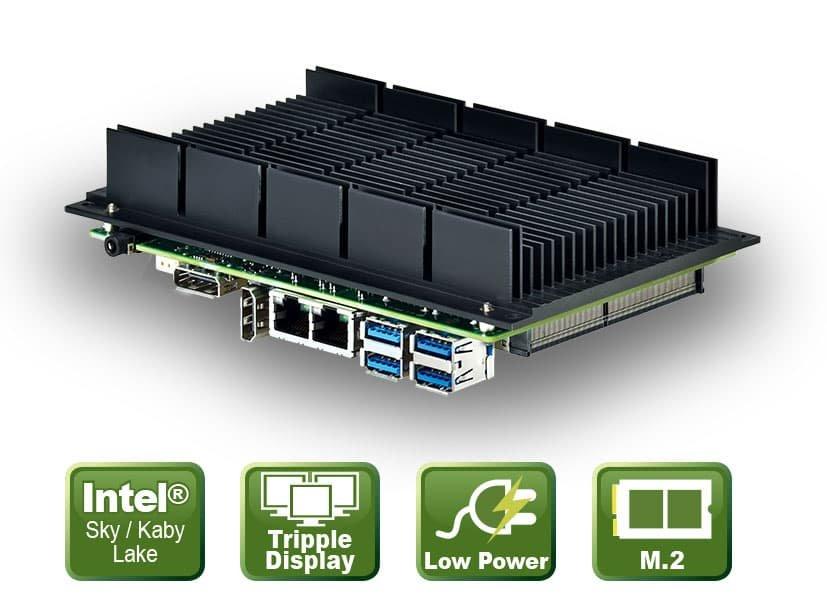

The 3.5" PD11KS board from ICP Germany offers system integrators a choice of eight Intel Skylake and Kaby Lake processors. Two Intel® Celeron^TM as low-cost entry-level models, two Core i3 and two Core i5 for the mid-range range and two high-end models with Core i7. A maximum of 32GB DDR4 memory can be installed in the two SO-DIMM sockets. The integrated Intel HD graphics provide a resolution of up to 4K (4096×2160) on the HDMI, the display port and the optionally available embedded display port as well as Full HD (1920×1200) on the LVDS port. Two Gigabit Ethernet ports, one SATA 6GB/s, four USB3.0, two USB 2.0 and three serial RS232 interfaces and one RS232/422/485 interface are available for communication with external devices. The board also features a MiAPI connector with ten programmable digital GPIOs and audio connections. For expansion the PD11KS is equipped with a Mini-PCI Express as well as a M.2 2230 slot. The 3.5" board is designed for a temperature range from 0 °C to 60 °C and a voltage range from 8 to 24 VDC. Upon customer request, ICP Deutschland can supply the board pre-assembled with the appropriate operating system and industrial memory as a ready-to-use system.

Specifications

• 3,5" board with Skylake / Kaby Lake Core i ULV processors
• Two DDR4 SO-DIMM sockets for up to 32GB RAM
• Triple Display Support: HDMI, Display Port and LVDS/eDP
• One SATA 6GB/s port
• Two Intel® Gigabit Ethernet ports
• USB 2.0, USB 3.0 and COM Ports
• Expansion: Mini PCI Express and M.2 2230
• 0 Module
• 8V ~ 24 VDC Voltage input

Applications

• Display solutions
• digital signage
• Embedded PC Systems
• Panel PC and HMI input systems
• POI/POS Systems

PD11KS
PD11KS 3,5" Board – Datasheet
