“The automotive industry has invested billions in fuel cell electric vehicles, but only very few cars are on our streets yet. One of the larger challenges is to efficiently and safely store hydrogen in the vehicle”, says Thorsten Groene, CEO of Munich-based Fiber Patch Placement specialist Cevotec. “There is working pressure of up to 700 bar in the tanks, which translate into approx. 10 kg of carbon fiber for 1 kg hydrogen storage – a very high ratio.”

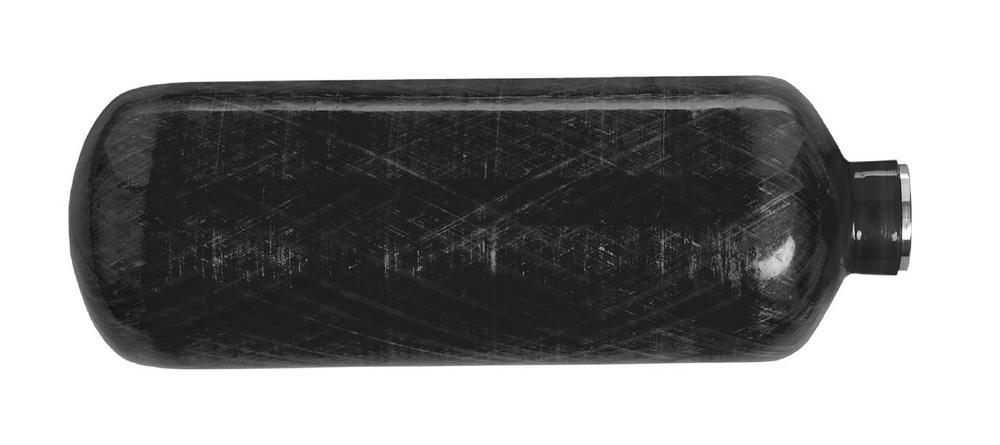

Obviously, manufacturers are interested in using less of the expensive fibers to reduce the vessel’s weight & cost. “Wrapping endless fibers around the liner is best for the cylindrical part”, says Dr. Neven Majic, Executive VP of Cevotec. “But filament winding at the domes means redundant material on the cylindrical part – which translates into excess weight and cost of the final product.” Cevotec’s solution is to apply carbon fiber patches in the dome areas, using the same material, just in patch form. “The patches are designed to exactly cover the areas causing problems in filament winding,”, explains Majic. With patch reinforcements on the liner domes in a first step, the patched liners are passed over to the filament winding process, which subsequently needs less material and production time for the dome areas.
Patching of the domes is done by Cevotec’s SAMBA Series production systems. “The Fiber Patch Placement technology cuts patches from fiber material and places them individually on positions calculated by CAE software ARTIST STUDIO”, continues Majic. “The investment in patch technology pays off from the first day of production”, adds Groene. One FPP system can reinforce vessels for several winding machines. Manufacturers can realize at least 20% material and cycle time savings. “When manufacturers combine winding and patch placement in series production, the FPP capital investment amortizes within the first year already. It’s a fairly simple calculation that we present to our interested customers.”
By consequently applying Fiber Patch Placement technology to today’s composite manufacturing challenges, Cevotec supports the advancement of composites for a green mobility revolution. Applications areas for FPP also include many components in aerospace and new urban air mobility, all of which are currently produced manually. The Munich-based FPP specialist has conceptualized a range of production cell configurations to match the manufacturing process to the different applications. Material efficiency and cost savings of 20% – 60% are typical benefits for manufacturers switching from manual lay-up to Fiber Patch Placement technology.
Cevotec enables manufacturers to build complex ﬁber composites in high volume and quality – by smart process automation based on Fiber Patch Placement technology. With SAMBA Series, Cevotec offers a customizable ﬁber lay-up automation platform for challenging 3D geometries and multi-material laminates with complex ﬁber orientation. ARTIST STUDIO is the associated CAE software for generating patch-based ﬁber laminates and automated robot programming. Along with development services that include FE-based modeling and simulation, Cevotec offers the entire process chain from digital design to ﬁnal ﬁber product.
