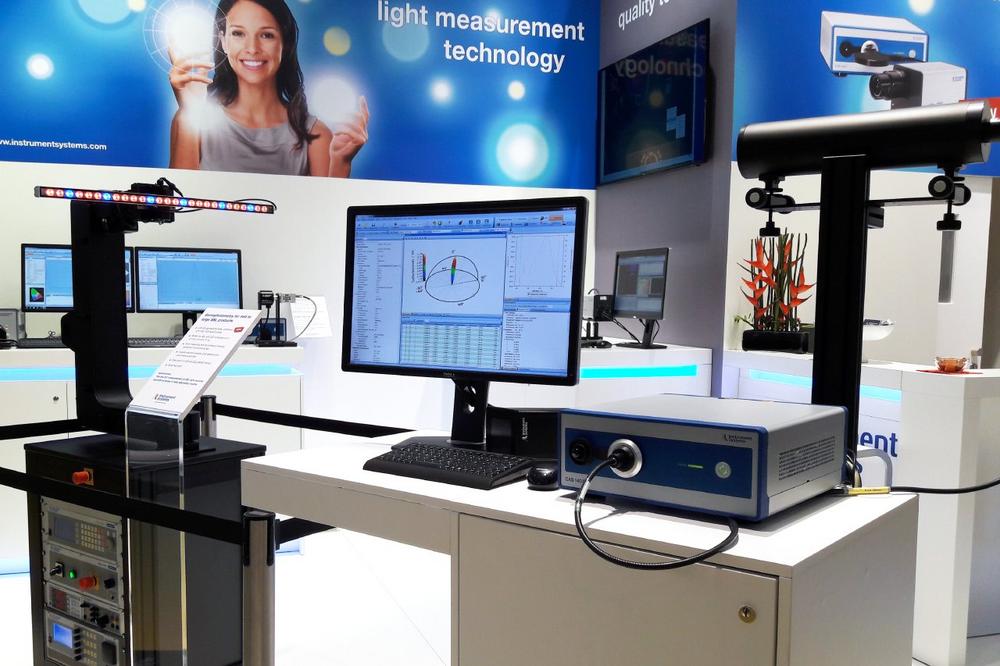

The LGS 650 was developed by Instrument Systems especially for the analysis of angle-dependent spatial radiation characteristics of medium to large size SSL sources and LED modules and offers a space-saving as well as competitively priced alternative to the larger LGS 1000. The test specimen is measured in a horizontal burning position and measurements can be taken at an angular range of ± 160° in the gamma axis. The high angular resolution of 0.01° spans a very fine measuring grid and ensures highly accurate and reproducible measuring data. The LGS 650 allows for the mounting of device specimen with a diameter of up to 1300 mm and a maximum weight of 10 kg and is compliant with all relevant specifications of CIE, DIN and IES standards. The LGS 650 is operated via the goniophotometer module of the SpecWin Pro software.
In Combination with one of Instrument Systems‘ spectroradiometer, e.g. CAS 140D, radiometrical and colorimetrical as well as photometrical parameter can be determined as a function of angle with highest precision. For the requirement of particularly time-critical measurements, Instrument Systems offers suitable photometer, for example the technological pioneering DSP 200. While the goniometer is in continuous movement, the DSP 200 captures the measurement values ‘on-the-fly’.
Join us in a discussion of your particular measurement tasks with our experts at booth #A13 and listen to our expert lecture on the subject "Blue Light Hazard-Evaluation".
"An Evaluation Guide for Blue Light Hazard"
Dr. Ðenan Konjhodžić, 26 September 2019, 11:30 am, Seestudio
Instrument Systems GmbH, founded in Munich in 1986, develops, manufactures and markets all-in-one solutions for light measurement applications. Its core products are array spectrometers and imaging colorimeters. The company’s main fields of activity are LED/SSL and display metrology, spectral radiometry and photometry, where today Instrument Systems is one of the world’s leading manufacturers. The Optronik line of products for the automotive industry and traffic technology is developed and marketed at its Berlin facility. Instrument Systems has been a wholly-owned subsidiary of the Konica MinoIta Group since 2012.
