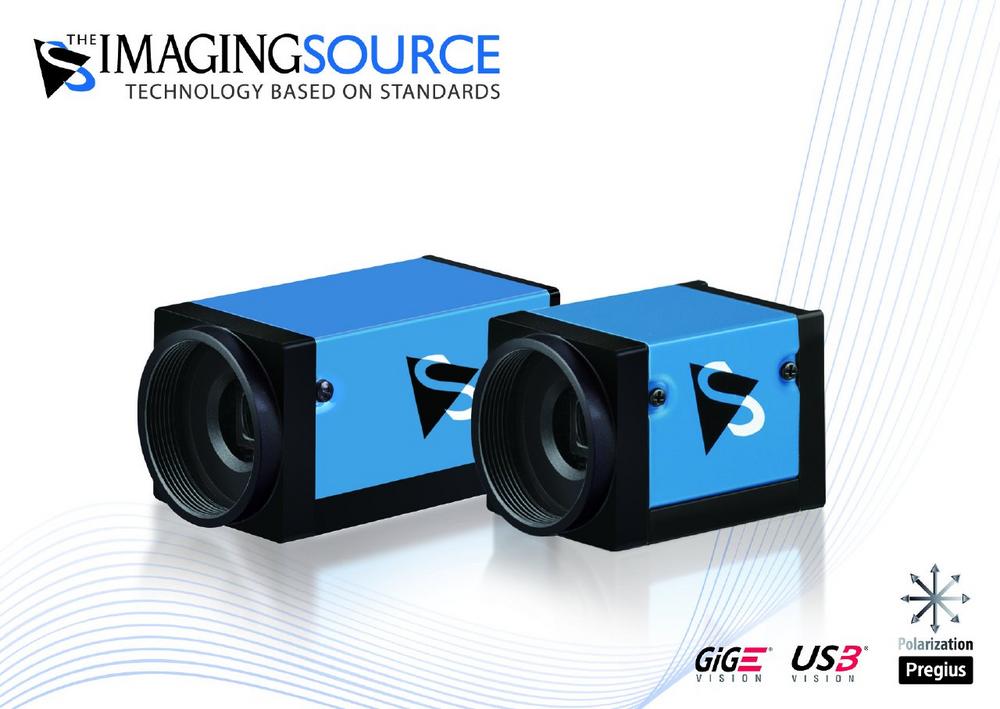

5 MP Polarization Cameras: A New Tool for Industrial Imaging

Many materials, such as plastics, glass, metals and liquids display intrinsic polarization properties. The sensors‘ polarization filters make use of this to visualize material stress and surface scratches as well as to reduce unwanted glare, improve edge detection or to enhance contrast in low-contrast materials. The supplied IC Measure software supports various methods of processing the 2×2 pixel arrays.

The 5.1 MP cameras are available as color and monochrome variants with either a GigE (max. 24 fps) interface or a faster USB 3.0 interface (max. 75 fps).

(For additional technical information about the sensor and example applications, please read our white paper.)

The cameras are USB Vision and GigE Vision compliant, ensuring compatibility and easy integration with image processing software using the standard. The cameras‘ compact form factor (USB: 29x29x43 mm / GigE: 29x29x57 mm) and robust industrial design make these camera models ideally suited for machine vision tasks in production, inspection and quality assurance.

Included in delivery: Camera, driver for Windows XP, Vista, 7/8/10, SDK IC Imaging Control 3.2 (.NET and C++ library), IC Measure and IC Capture. IC Measure is a powerful and versatile tool for measuring lengths, areas and angles. IC Capture is a powerful end-user software for setting all camera parameters and for displaying and saving single images and image sequences.
