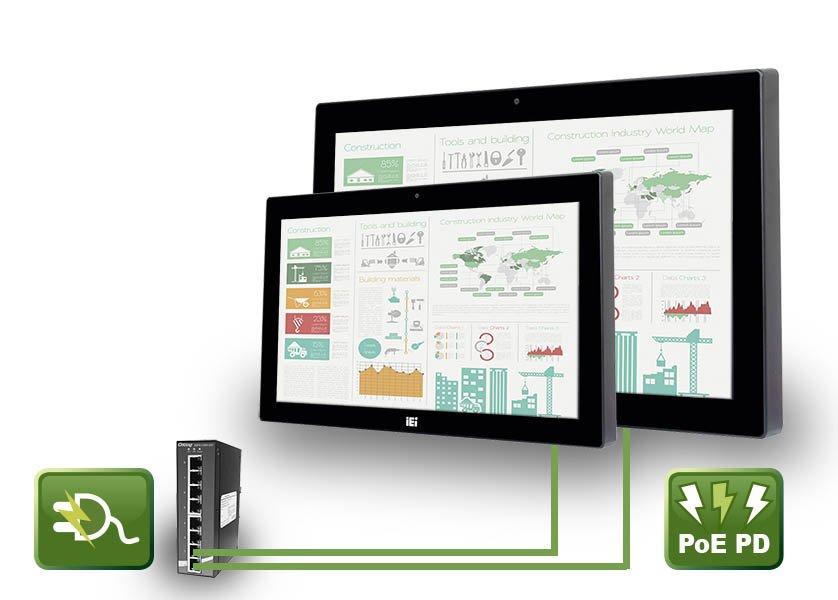

The AFL3-AL series is equipped with capacitive touch (PCT) as well as anti-glare and anti-UV protection. Inside it works an Apollo Lake Intel® Celeron® J3455 processor with max. 8GB DDR3L memory. A 2.5" SATA 6Gb/s hard disk frame and an M.2 slot are available for data storage. Optionally, the M.2 slot serves as an E-Window extension for implementing additional interfaces such as LAN, DLAN, Profibus or EtherCAT. Depending on the display size, one RS-232/422/485, one RS-232, two USB 3.1, two USB 2.0 and one HDMI are available. The AFL3-AL is equipped with a WiFi kit and integrated Bluetooth 4.1 as standard and offers a wide range of mounting options from panel and wall mounting to VESA mounting. The filigree housing design has been retained so that the AFL3-AL series is still suitable for use in a temperature range of -20~+50°C and can be operated with 9~30V. ICP offers suitable switches and inverters that support the Ethernet standards IEEE802.3at/bt so that nothing stands in the way of the PoE upgrade of the AFL series.
Specifications
- 1"-15.6" Panel PC AFL3 series with PoE functionality
- PoE according to IEEE802.3at/bt
- Capacitive touch with anti-glare and anti-UV protection
- Apollo Lake Intel® Celeron® J3455 Processor
- 8GB DDR3L memory
- LAN GbE, COM, USB
- One 2.5" SATA 6Gb/s SSD and one M.2 Slot
- Optional E-Window M.2 extension
- Voltage input: PoE or 9~30VDC
- Operating temperature: -20°C~+50°C
Applications
- Automation
- PoE Powered Device
- HMI operating system
Product link
Datasheet
https://files.icp-deutschland.de/produkte/KC001982/web/icp/AFL3-POE-datasheet-20190305.pdf
