Connection solutions for confined spaces from LAPP

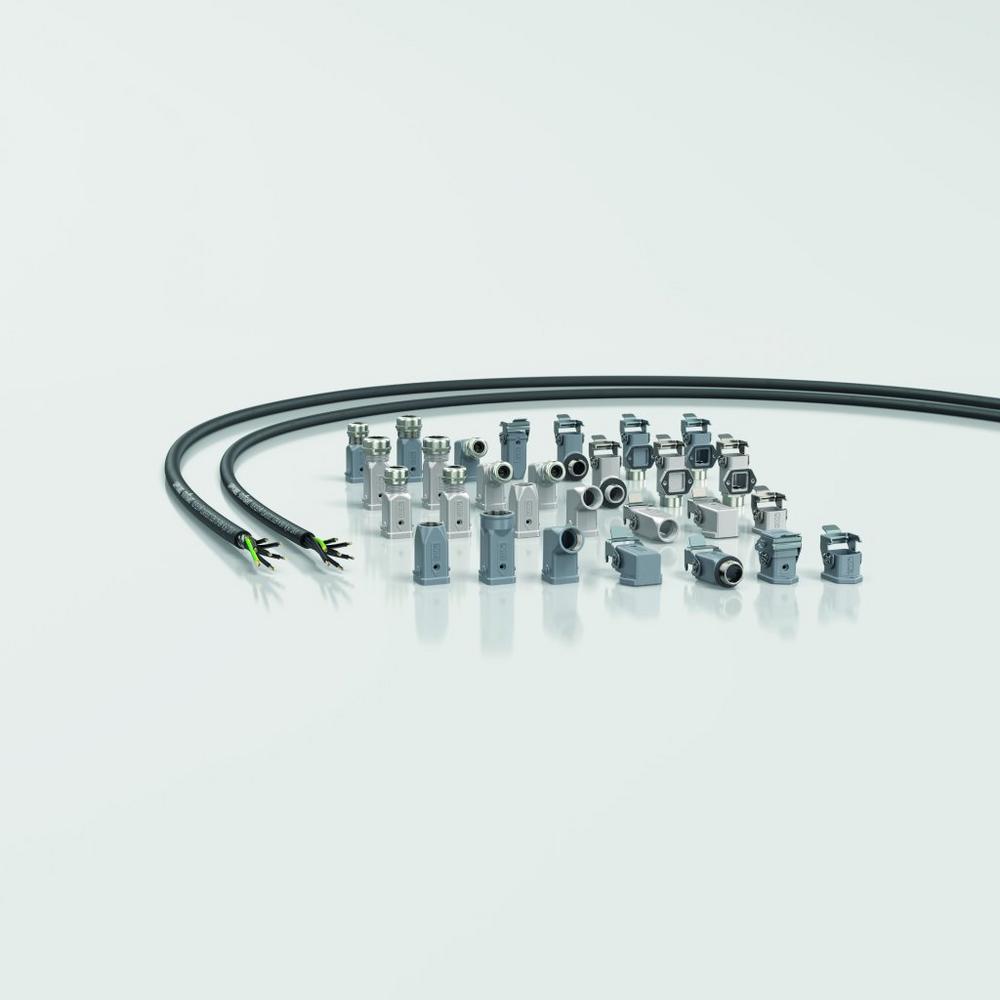

EPIC® H-A 3 rectangular connector housings: Compact and easy to install
Can larger enclosures take up less space? This is possible with the three new versions with integrated SKINTOP® screw connection of the EPIC® H-A 3 rectangular connectors. The design of the housings is significantly smaller compared to the versions where the cable gland is added separately. The robust die-cast zinc housings in the long version also permit more flexible assembly with small and large inserts and accommodate cables with up to 30% larger cross-sections. All this can add up to save a considerable amount of space.

Other new housing designs such as the screw-in housing in straight and angled designs can be attached directly to the control cabinet. The wall gasket for the redesigned bulkhead mounting and base housings is now fixed in the flange so that it cannot be lost, making installation much easier. In addition, the orientation arrow integrated into the housing contour enables easy and safe plugging, even in inaccessible places.

EPIC® ULTRA H-A 3: EMC-protected all around
The new space-saving H-A 3 enclosures are also available in particularly robust and EMC-safe EPIC® ULTRA versions. The integrated SKINTOP® BRUSH cable gland comes with a 360° shield contact connecting the shield of the cable all around to the connector housing, which itself acts as a Faraday cage. This perfect EMC protection ensures high transmission reliability. The stainless steel brackets and fixing screws as well as the nickel-plated surfaces guarantee high corrosion resistance.

ÖLFLEX® CLASSIC 128 H BK 0.6/1kV: Slim and fireproof
Since 1957, ÖLFLEX® has stood for control cables of the highest quality. This slim connection and control cable with special fire protection properties proves that even the oldest brand in the LAPP portfolio can still be innovative. It is suitable for systems in public buildings where people and property must be protected and meets all important regulations regarding flame retardance, fire propagation and freedom from halogen. The LAPP developers have not bought the extra fire protection with additional protective layers – on the contrary. The cable is slimmer than some comparable types on the market. Under the designation ÖLFLEX® CLASSIC 128 CH BK 0.6/1kV it is also available as a shielded variant for EMC-critical environments. Among other things, this cable is surprisingly thin and therefore easy to install due to the fact that it does not have an inner sheath.

EPIC® DATA DIN Adapter
These adapters for connecting fiber optic cables with SC, LC and SCRJ connectors are clipped into the DIN rail. They are particularly compact and take up very little space in the control cabinet.

LAPP will show its complete portfolio of space-saving connectivity solutions at SPS Messe 2019 in Hall 2, Booth 310.
