Camera systems for the visible and IR range

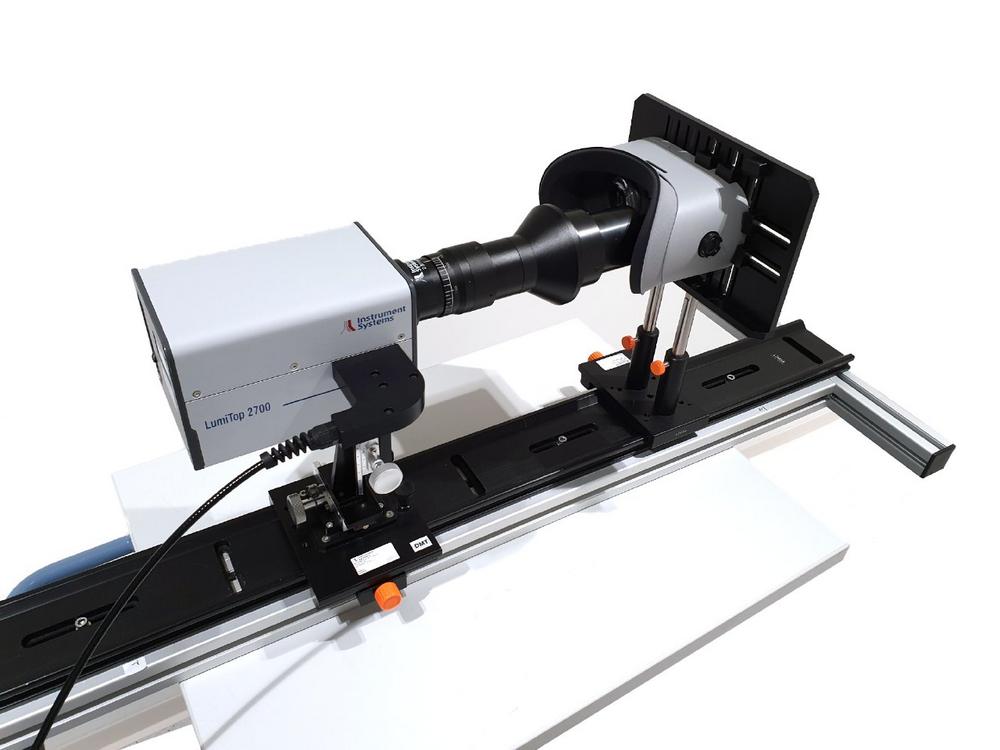

In conjunction with the time-of-flight application of VCSELs in the infrared spectral range, eyeglasses and displays of AR/VR applications can also be measured with the aid of the production-proven DTS system. The latter is based on the new, particularly fast CAS 125 spectrometer with a minimum integration time of 11 µs that is connected by an optical fiber to a calibrated LumiTop camera. Specially developed lenses guarantee the best imaging properties and customized measuring systems. These systems are available for the visible and infrared spectral range.
Time-of-flight application von VCSEL arrays
If laser diodes and VCSEL arrays are to be used for time-of-flight applications, they must be measured in terms of performance and spectral intensity, and their emissions and generated pulses characterized. For this purpose, Instrument Systems offers absolutely calibrated spectroradiometers for different wavelength ranges together with a wide range of accessories. Widely used in the production environment is a system that couples the emitter into an integrating sphere and measures it instantaneously with the aid of photo diodes and a spectrometer of the CAS series. A fast photodiode and the emitter’s specially developed control electronics guarantee characterization of pulses in the single-digit nanosecond range and recording of the LIV curve. In addition, the single emitters of the VCSEL array can be analyzed with the aid of an absolutely calibrated camera from the LumiTop series, enabling conclusions regarding the spatial radiation properties in the near and far field.
Absolute calibration ensures exact error budget
These measurement solutions are based on an absolute calibration that is traceable to the PTB. This results in a clearly defined error budget that has enormous significance particularly for the eye safety assessment of VCSELs. All systems are available both as lab systems and as production systems with a focus on faster cycle times and attractive price structure.
