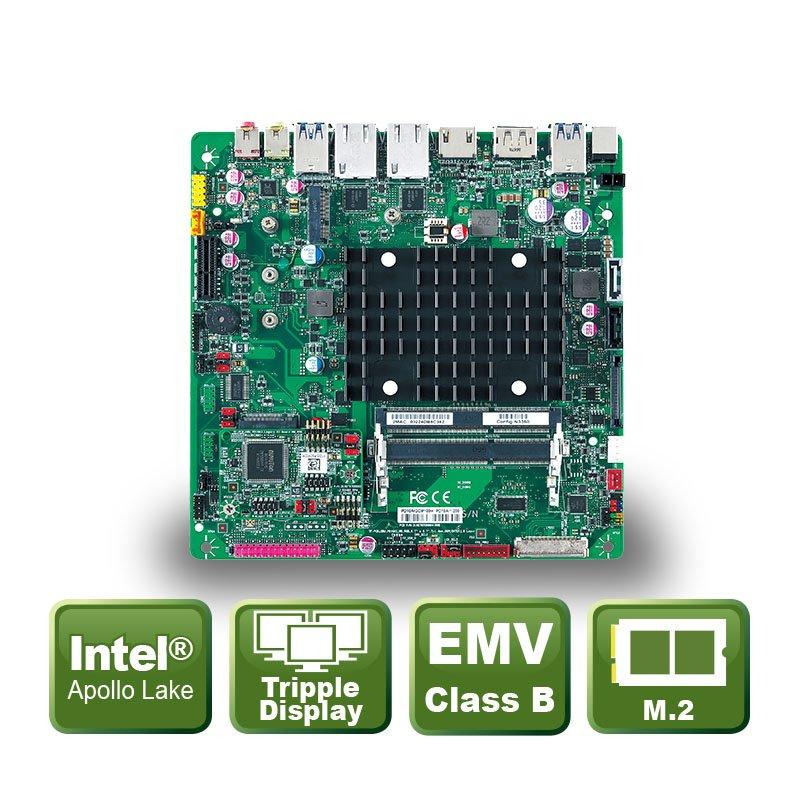

With the PD10AI, ICP Deutschland launches a Thin Mini ITX Board that supports system integrators in two ways. The first is the low height of the board, which is required for particularly compact systems. On the other hand by the design of the board, which allows the certification according to EMV/FCC class B.

The PD10AI is equipped as standard with the Intel® Celeron® N3350 Dual Core processor, which supports a burst frequency of 2.4GHz. Optionally, a version with Quad Core Intel® Pentium® N4200 with 2.5GHz burst frequency is available. Both versions support up to 8GB DDR3L SO-DIMM memory with a maximum clock rate of 1867MHz. The internal Intel® HD graphics unit provides triple display support. A 4K HDMI with max. 3840×2160 resolution, a 4K display port with max. 4096×2160 resolution and a Full HD LVDS connector with max. 1920×1200 resolution are available. The LVDS connector can optionally be replaced by a 4K embedded display port with max. 3840×2160 resolution.

The PD10 AI is equipped with two Intel® i211-AT network ICs which support a maximum speed of 1Gb/s and the PTP (Precision Time Protocol) according to IEEE1588. The motherboard offers four USB 3.0, two USB 2.0, one LPT and two RS-232 interfaces for the connection of peripheral devices. Mass storage devices can be connected to the two SATAIII or the M.2 2280 B keys with SATA and USB signals attached. Optionally the PD10AI can be extended with a configurable COM interface module MS-04COM-D10. With this two RS-232 interfaces with adjustable voltage output for external devices as well as two RS-232/422/485 interfaces are available. The LPT port can optionally be converted to a MiAPI interface and provides ten programmable GPIOs, one SMBUS, one UART and watchdog functionality.

A PCI Express x1 slot, an M.2 2242/2260/2280 and an M.2 2230 slot are available for add-on card expansion. To protect the system, the PD10AI can be equipped with a TPM module. The PD10AI is designed for operation with 8 to 24 volts DC. All variants work reliably in a temperature range from 0 °C to 60 °C. Upon customer request, ICP can also supply the PD10AI as a bundle with industrial RAM and storage medium.

ICP. Industrial Computer Products …by people who care!

Product link:

https://www.icp-deutschland.de/en/industrial-pc/cpu-boards-cpu-cards/mainboards/mini-itx-kino/pd10ai-n4200.html

Datasheet:

https://files.icp-deutschland.de/produkte/KC001674/web/icp/PD10AI-datasheet-20190617.pdf

Specifications

  • Thin-Mini-ITX Form Factor
  • Intel® Celeron® N3350 or Pentium® N4200 Processor
  • Intel® H310/Q370 chipset
  • 8GB DDR3L SO-DIMM RAM
  • Triple Display Support
  • 2x M.2, 1x PCIe x1 (Gen. 3)
  • Intel® GbE Ethernet, USB, HDMI, DP, LVDS/eDP,
  • Configurable RS-232/422/485
  • Designed for EMC class B
