With two new models BEO-0812 (+12V) and BEO-0824 (+24V) presented, the power supply specialist Bicker Elektronik (Donauwoerth/Germany) is expanding its AC/DC switching power supply series BEO by power class 80 Watt fanless for contact cooling in the space-saving form factor 2×4". With forced air cooling, up to 150 Watt continuous power is available. The BEO-0800 series is also characterized by its high efficiency of up to 91% and low standby consumption <0.48 W. The rugged and reliable industrial power supplies have a wide-range input of 90 to 264 VAC with active power factor correction (PFC) for worldwide use and are certified to IEC/EN/UL62368-1. Due to the very good electromagnetic compatibility (EMC), the BEO-0800 series meets the stricter class B of EN55032. The high quality of the components used and the excellent circuit design ensure a long service life and safe 24/7 continuous operation in the extended temperature range of -20…+70°C.

Conduction cooling for fanless systems

For optimum thermal connection of the power components on PCB bottom side to chassis of the application, BEO-0800 series already includes a suitable thermal pad. Due to ideal heat conduction properties and the flexible pad surface, the pre-assembled thermally conductive gap filler creates an optimal connection between the power components and the connected housing chassis, so that no active cooling is necessary. Due to the very good thermal management, the heating of the switched-mode power supplies are reduced to a minimum, making maintenance-free systems without rotating fans possible. The already included insulation foil has a precisely fitting opening for the thermal pad.

High power density for a variety of applications

The BEO-0800 series combines high energy efficiency across the entire performance range with the compactness of a robust 2×4" industrial PSU. The switching power supplies can be used up to an operating height of 5000 meters and have short-circuit and overcurrent protection. The insulation voltage between input and output is 4000 VDC. The space-saving BEO-0800 series is suitable for a large number of fanless industrial applications and embedded IPC systems with single voltage supply: Industry 4.0 / IIoT, automation, process measuring and control technology, energy, communication, POS / POI, digital signage, and many more.

Genuine accessories

The 3-pin AC input line CB-105-3-600 or the 2-pin AC input line X1-054 are available as optional accessories for AC input mains connection, and the 4-pin DC output line CB-BEO-0800 on the DC output side – each made in AWG18 with a length of 600 mm and open ends.

Extensive value-added services

In addition to the three-year device guarantee, Bicker Elektronik GmbH offers long-term availability of at least 5 years. In particular Long-running applications benefit from optimal investment protection. The project-related and individual design-in advice is rounded off by first-class service and support from Germany. Upon request, the R&D engineers at Bicker Elektronik can also implement customer-specific special solutions. Bicker Elektronik’s offer also includes extensive laboratory and measurement services for complete customer systems as well as performance profile analyzes for the exact dimensioning of the power supply.

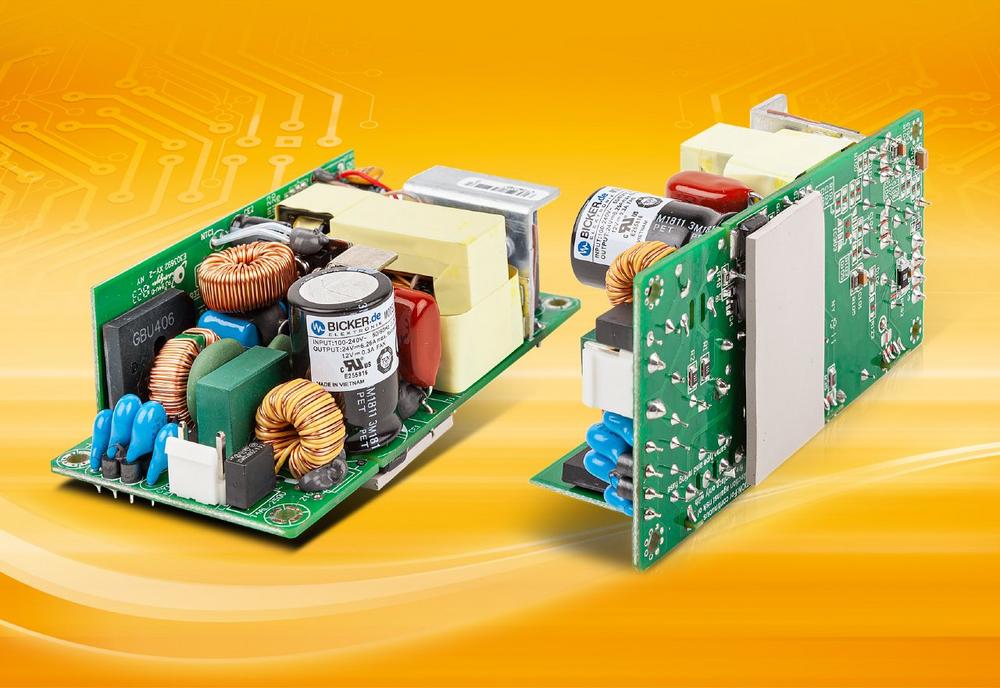

Bicker BEO-0812 / BEO-0824

All features at a glance

✓  AC/DC switching power supplies for industry

✓  Available with 12V and 24V output

✓  Very compact 2×4" design

✓  80 Watt continuous fanless power

     (150 Watt with forced air cooling)

✓  Pre-assembled thermal pad for conduction cooling

✓  High efficiency up to 91%

✓  Low standby consumption <0.48W

✓  Operating temperature range -20…+70°C

✓  Additional +12V fan output (0.3A max.)

✓  Operating altitude up to 5000 m

✓  Certified according to IEC/EN/UL62368-1

✓  High reliability (MTBF)

✓  Suitable for 24/7 continuous operation

✓  Long-term availability at least 5 years

✓  3 years warranty

Direct link to BEO-0800 series:

https://www.bicker.de/…

Über die Bicker Elektronik GmbH

Based in Donauwoerth/Germany, Bicker Elektronik GmbH has been developing, manufacturing and selling highly reliable power supply solutions (3 to 24,000 watts), UPS systems and system components for 25 years. These include industrial, IPC and medical power supplies, encapsulated modules, DIN rail power supplies, DC-DC converters and modular DC UPS systems with long-life energy storage devices (Supercaps, LiFePO4, Li-Ion or lead batteries) for uninterruptible power supply. The portfolio is rounded off by matching industrial mainboards from manufacturers AAEON, ASRock, Avalue, Fujitsu and Perfectron. The perfectly matching "Power+Board" bundles save valuable time and money in system development. In addition, Bicker Elektronik offers suitable processors and storage solutions in industrial quality. The high product quality, excellent service and extensive know-how in development offer decisive added value for the international customers of Bicker Elektronik. With personal design-in consulting, many years of experience and flexibility in the implementation of individual requirements, Bicker Elektronik provides its customers with the right tailor-made solution in a timely manner. The extensive warehousing at the headquarters in Donauwoerth also guarantees a fast and timely delivery. The company is TÜV certified according to ISO 9001: 2015. The target markets of Bicker Elektronik are Industry 4.0 / IIoT, automation technology, robotics, medical and laboratory technology, measurement and control technology, transportation, maritime, energy, communication and information systems, gaming, POS/POI, digital signage, safety and building technology.
