This way, during commissioning of the sensor, users can benefit from all IO-Link advantages, which considerably simplify sensor parameterization while still allowing process control by the sensor via the 4 … 20 mA analog output. Furthermore, the IO-Link makes it possible to call up additional process data such as the pressure of the measurement cell or the temperatures of the pressure sensor and the microchip in the central processing unit. Access to this information allows for interesting investigations: for example, whether an unusual temperature rise has occurred in a container, which may indicate a defect or faulty dosage of the ingredients in a tank. As high temperatures may decrease the service life of the sensor or other system components, this may indicate the need for preventive maintenance – one of the promises of Industry 4.0. Of course, the PP20H series offers all the advantages of IO-Link, such as quick parameterization during operation and prior to installation. Even more, a new sensor easily learns the parameters of the old sensor via the master and is immediately ready for operation upon installation. For Baschar Al Hammoud, this is only the first step: “We are planning additional functions based on IO-Link.”

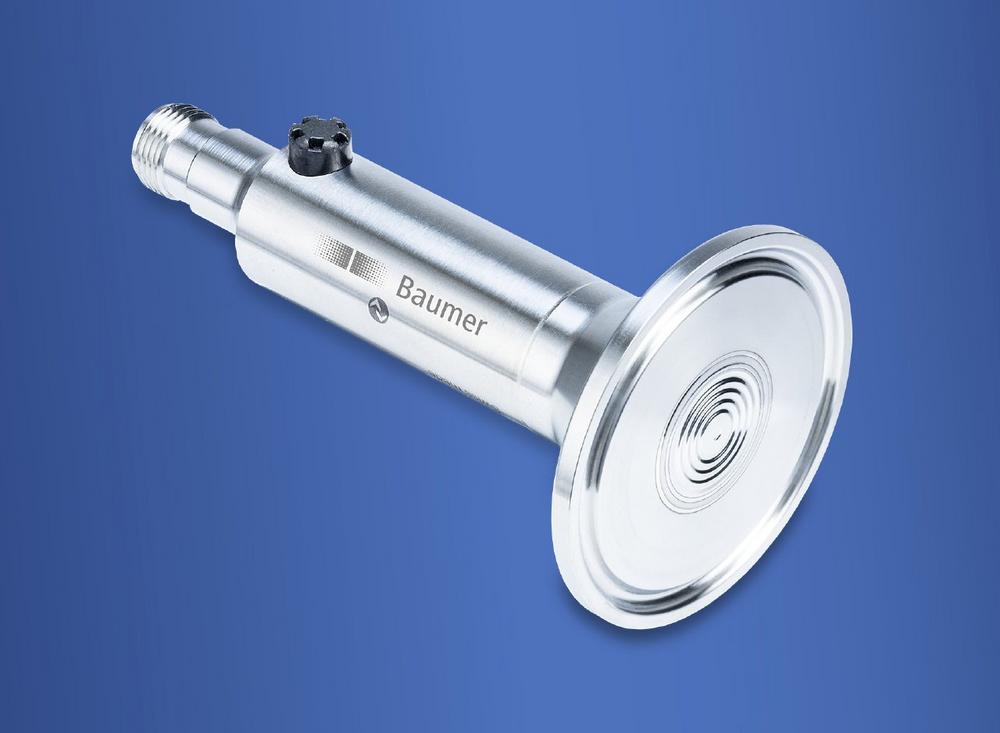

The PP20H also exceeds all standards also in terms of robustness. Its measurement cell is completely sealed even during relative pressure measurement. This prevents the entrance of warm and humid ambient air, which may precipitate with low process temperatures. This is the case, for example, in milk or ice cream processing. At the same time, the sensor must be somehow “open” to the surroundings because the sensor will also determine the difference to the ambient temperature. The Baumer engineers devised a unique technical solution for this challenge – they placed a barometric pressure sensor in the back of the housing that can measure the reference pressure of the environment via an opening. This way, the actual silicon measurement cell in the front remains hermetically sealed. The PP20H is therefore not only suitable for CIP (Clean in Place) and SIP (Sterilization in Place) processes, but also for sudden changes in process media temperatures.
More information available at: www.baumer.com/pp20h
The Baumer Group is one of the worldwide leading manufacturers of sensors, encoders, measuring instruments and components for automated image processing. Baumer combines innovative technologies and customer-oriented service into intelligent solutions for factory and process automation and offers an unrivalled wide technology and product portfolio. With around 2,700 employees and 39 subsidiaries in 19 countries, the family-owned group of companies is always close to the customer. Baumer provides clients in most diverse industries with vital benefits and measurable added value by worldwide consistent high quality standards and outstanding innovative potential. Learn more at www.baumer.com on the internet.
