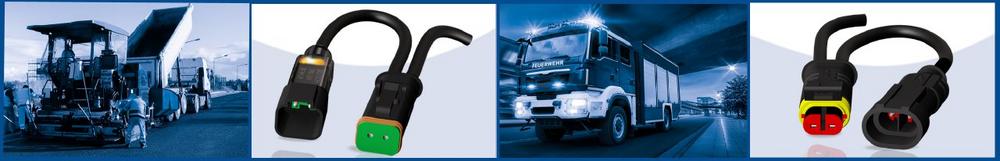

CONEC has extended their range of DT and Superseal valve connectors by versions with double cable outlet.

Versions with double outlet are mostly used as Y-distributors for the distribution of signals and power, with variable cable lengths and the possibility to assemble different connectors at the cable ends according to customer requirements. Versions with double outlet are also often used in DaisyChain applications with multiple cascaded connectors, e.g. to control valves via a CAN-Bus.

The option of distributing the signals and power in the connector to two additional ones, offers possibilities for making systems more compact and thus for saving installation space.

The version with double outlet is offered with a PUR cable and a strand cross-section of 0.75 mm² in 1 m length.
The double outlet option is currently implemented for the 2-, 4-, 6- and 8-pos. DT (socket and plug contact version), as well as the 2- and 3- pos. socket contact version and the 3- and 4-pos. plug contact version Superseal.

In addition to the standard parts with open cable end, various combinations are possible upon request. Simple Y-connecting cables with connectors of the same type, as well as combinations with different connector types are possible.
In addition to the versions with double outlet, CONEC has also implemented termination caps versions for the DT and Superseal series.
The termination caps not only protect unused connectors from contamination. When using these protective caps, the protection class according to IP67 / IP69K is also met.
The hole at the end of the caps also offers the possibility of attaching a rope to make the caps captive.
As standard, the caps are designed without contacts and additional circuit.

As an option, it is possible to integrate resistors and short-circuit bridges into the end caps. This way, for example, termination plugs for CAN-Bus systems and also connectors for coding can be realised. The application possibilities are very diverse.

Existing mounting options, which are plugged to the connector housing, can still be used for the double outlet and termination cap versions.

Benefits:
• Compact design
• Distribution from one connector to 2 lines possible
• Optional use as cascade and Y-distributor saves connections and thus the required installation space
• Protection of unused connectors against contamination
• Can be used as a terminating plug
• Degree of protection IP67/IP69K
• Overmoulding ensures continuous protection from housing to cable.
• Use in harsh environments
• Use in bus systems
• Tamper-proof, tested assembly

Fields of application:
• Agricultural & construction machinery
• Transport industry
• Road construction machinery
• Process control
• Control systems

Über die CONEC Elektronische Bauelemente GmbH

For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.

The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.

As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.

In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.

CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Republic, Poland and France.

The product portfolio includes connectors of the following categories:

• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions

The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
