Carbide inserts are ideal for machining at lower RPM, or in thin-walled workpieces and less stable conditions, while ceramic inserts (KY3500 grade) provide elevated surface speeds resulting in higher productivity. Both offer excellent performance. For fine finishing operations, PcBN inserts will deliver the best possible surface finish, tool life, and throughput.

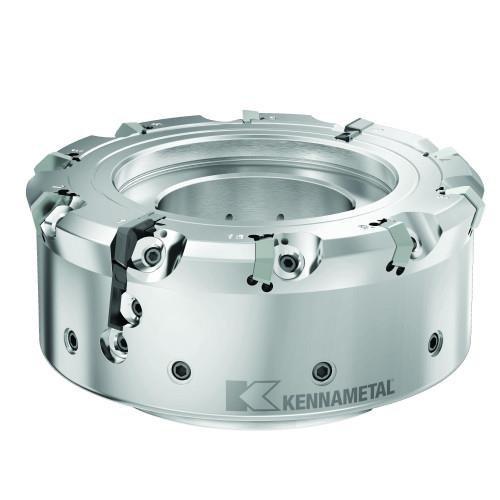

“With the KCFM 45 face milling cutter, users can mix and match different insert options to suit the application requirements and machining conditions,” says Michael Hacker, Product Manager,
Kennametal. For example, you might use PcBN finishing inserts in the adjustable pockets and
ceramic or carbide inserts in all other pockets for wet machining or lower volume applications. Regardless of the configuration, the KCFM 45 exceeds the highest surface requirements.
The inserts are positioned at a positive axial angle, but with a slightly negative radial angle for better tool life. That creates significantly lower machining forces than competing cast iron face mills, helping to eliminate chatter and further improving surface finishes.
“The KCFM 45 with its adjustable pocket seats can generate surface finishes of 0.8μm Ra (32 μin.) or better, and waviness lower than 10μm Wt (400 μin.),” says Hacker. The KCFM 45 is ideal for gray cast iron, CGI applications, semi-finishing and fine-finishing
With over 80 years as an industrial technology leader, Kennametal Inc. delivers productivity to customers through materials science, tooling and wear-resistant solutions. Customers across aerospace, earthworks, energy, general engineering and transportation turn to Kennametal to help them manufacture with precision and efficiency. Every day approximately 10,000 employees are helping customers in more than 60 countries stay competitive. Kennametal generated nearly $2.4 billion in revenues in fiscal 2019. Learn more at www.kennametal.com. Follow @Kennametal: Twitter, Instagram, Facebook, LinkedIn and YouTube.
