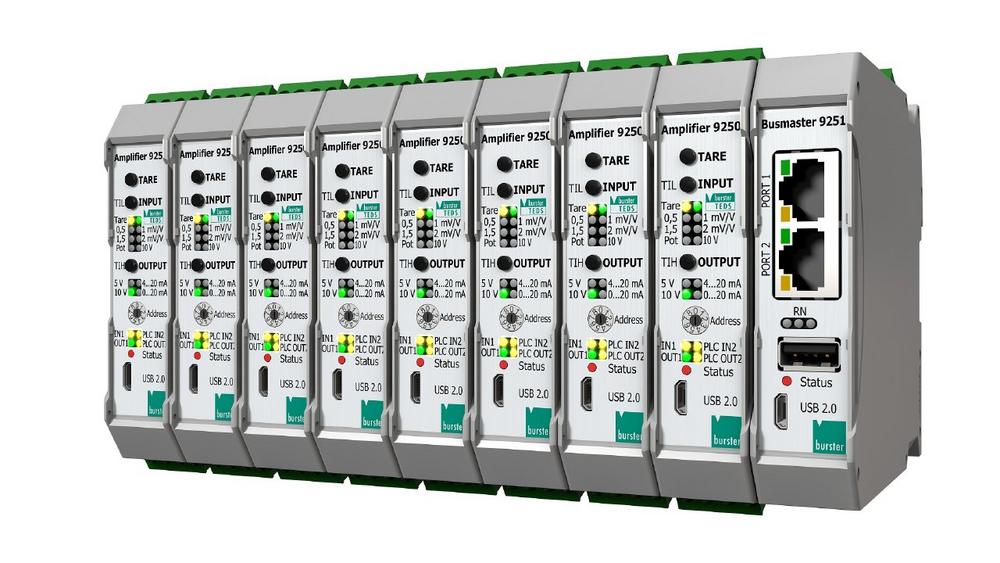

Burster’s 9251 Ethernet fieldbus controller and 9250 instrumentation amplifier systems enable the flexibility to mix the customer’s preferred strain gauge, potentiometer, voltage or TTL sensor technologies. With rapid sensor set-up using Burster’s TEDS push-button auto-sensing facility, this extends to a manufacturer-independent choice that allows the integration of sensor data for complete machines and systems where high precision and real-time measurement of torque, force, vibration, pressure, etc., is required for extensive condition monitoring and preventative maintenance purposes – a pre-requisite of Industry 4.0.
The 9251 Ethernet controller also offers an optional analogue input with a ±10 V range that may be used as an additional measurement channel – allowing up to nine sensors per Ethernet fieldbus interface. This same option includes a PLC I/O channel (DIN61131) that may be used for tare, tare reset, or limit reset etc.
The 9250 series instrumentation amplifier is based on 24-bit A to D conversion for highly accurate measurement with the sensor power provided by the amplifier module and no additional voltage source required. The amplifier may also be used independently of the fieldbus controller – its USB port and Burster’s DigiVision PC software may be used to configure autonomous measurement systems where a choice of sensor output and a range of other parameters can be called and set. As with many of its sensor products Burster can optionally supply these instrumentation amplifiers with DAkkS-certified calibration certificates.
The durable and compact 9251 and 9250 housings, finished in a polyamide material with metal support elements, feature DIN- rails mounting for convenient installation with the possibility to mount the amplifiers close to the sensor if required.
Burster’s full range of sensors and measurement solutions are fully supported in the UK by Ixthus Instrumentation as the German manufacturer’s distribution partner. For more information and complete application support, please visit www.ixthus.co.uk or call +44 (0) 1327 353437.
Ixthus works closely with leading global suppliers of non-contact sensing technologies as well as force, torque and vibration sensor and transducer manufacturers, providing a complete service with its knowledgeable technical staff available to solve customers‘ measurement problems – from the first enquiry to complete after-sales support.
