In conventional cabling of large machines or production plants with electric motors, servo drives or linear units, the cabling effort is very high. Separate cables are used for power and data/signal transmission for different, separate tasks. This wiring concept is not only expensive, but also space- and maintenance-unfriendly.

Due to the permanently increasing cost pressure and the miniaturisation of the devices, in connection with an increasing data volume and high transmission speeds, new solution approaches for more efficiency in the field of cabling are required.

CONEC has developed a compact hybrid connector system for combined power supply and data transmission according to CAT5 which is carried out by means of a specially developed hybrid cable. This single-cable technology corresponds to modern connection and interface wiring technology.

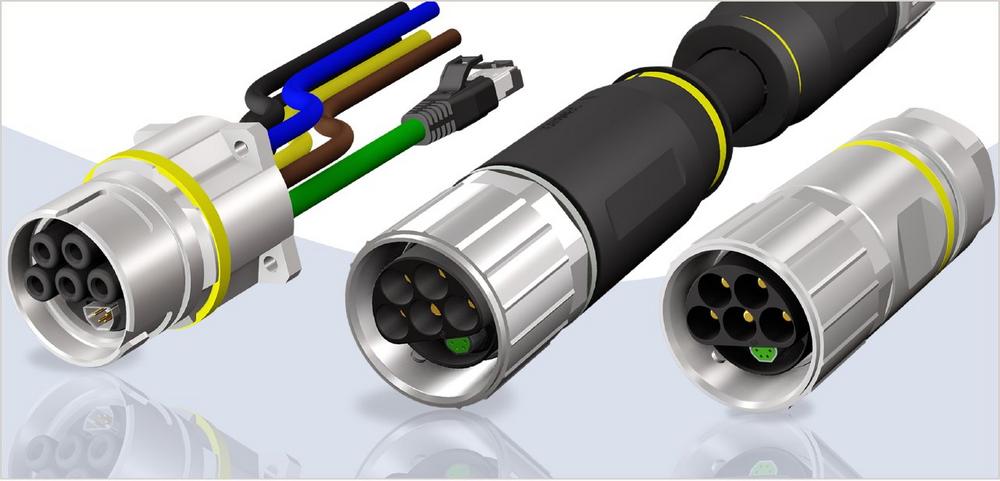

The newly developed CONEC hybrid connector series size B40 is the logical further development of the previous B12, B17 and B23 hybrid connector series. This development has resulted in a compact hybrid connector system for the transmission of high currents of up to 64 A in order to meet the increased current requirements of large systems and machines. Due to the large connectable conductor cross-section of up to 16 mm², the power supply can be maintained over long distances without major power loss.

CONEC B40 hybrid connectors have a separately shielded 4-pole data element for the transmission of Industrial Ethernet according to ISO11801 Class D or alternatively signals with currents up to 4 A. Wire cross-sections up to AWG22/0.34 mm² and wire diameters up to 1.6 mm can be easily assembled. The size is completed by five power contacts with a wire cross-section of 16 mm².

Advantages:
Space saving by transmitting data and power in one connector
Reduced cable expenditure
Cost saving
Fast and secure connection by bayonet locking
Protection class IP67
Compact and robust design

Fields of application:
Drive technology
Machine manufacturing
Robotics
Assembly and production lines
Renewable energy sources

Über die CONEC Elektronische Bauelemente GmbH

For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.

The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.

As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.

In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.

CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Republic, Poland and France.

The product portfolio includes connectors of the following categories:

• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions

The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
