CONEC has expanded its portfolio of M12 connectors to include L-coded axial THR variants, thus offering a compact, powerful solution for supplying power to automation devices.

In addition to signals and data, more and more energy must also be transmitted. Miniaturisation in automation means that devices and controls at field level are becoming smaller and smaller.

Insulation bodies with O-ring offer the great advantage of being fully automated and processed in the THR reflow soldering process, which significantly increases the efficiency of device production in the electronics sector and reduces production costs.

The new connectors are always supplied with a foil or cap for pick and place application and, upon request, in tape and reel packaging. In addition, corresponding protective caps are now available for the M12 L – coded connectors.

The new axial M12 L-coded connectors require approx. 50 % less installation space compared to a 7/8" connector. Due to the high current carrying capacity of up to 16 A, they are also able to ensure the power supply of devices through a miniaturised interface.

This is necessary because electrical drive technology devices are also becoming more and more compact. Thus, signals, data and power can now be transmitted consistently with the help of the M12x1 connector system. The new M12x1 L-coding is standardised according to IEC 61076-2-111. This allows the user to save significant space and thus have greater freedom in the design of their device applications and cabling.

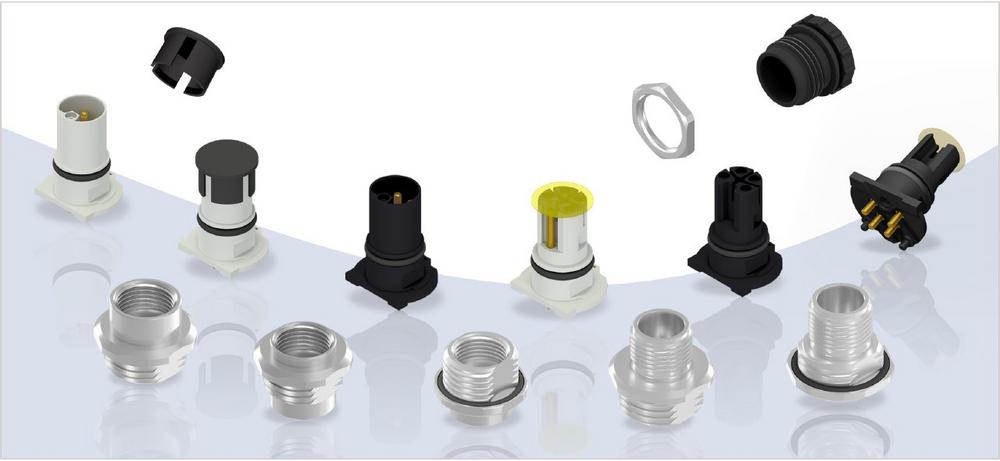

The L-coded insulating bodies with O-ring are available as male and female version, each in 4-pos. and in 4-pos. with FE. Suitable housings are available for front and rear panel mounting, with width flats providing anti-rotation protection in the housing, if required.

The new protective caps for the M12 L coded version offer optimum protection against contamination in harsh environments and thus always ensure an operational interface.

All variants meet the IP67 degree of protection in mated and mounted condition.

Fields of application
Drive technology
Automation technology
Industrial interfaces
Assembly and production lines
Process automation
Servo motors
Mechanical engineering
Transport industry

Advantages
Compact design
Conforms to the IEC 61076-2-111 standard
High current transmission
Protection class IP67
RoHS compliant
Easy assembly
Including foil or cap for pick and place application
Tape and reel packaging upon request

Über die CONEC Elektronische Bauelemente GmbH

For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.

The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.

As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.

In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.

CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Republic, Poland and France.

The product portfolio includes connectors of the following categories:

• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions

The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
