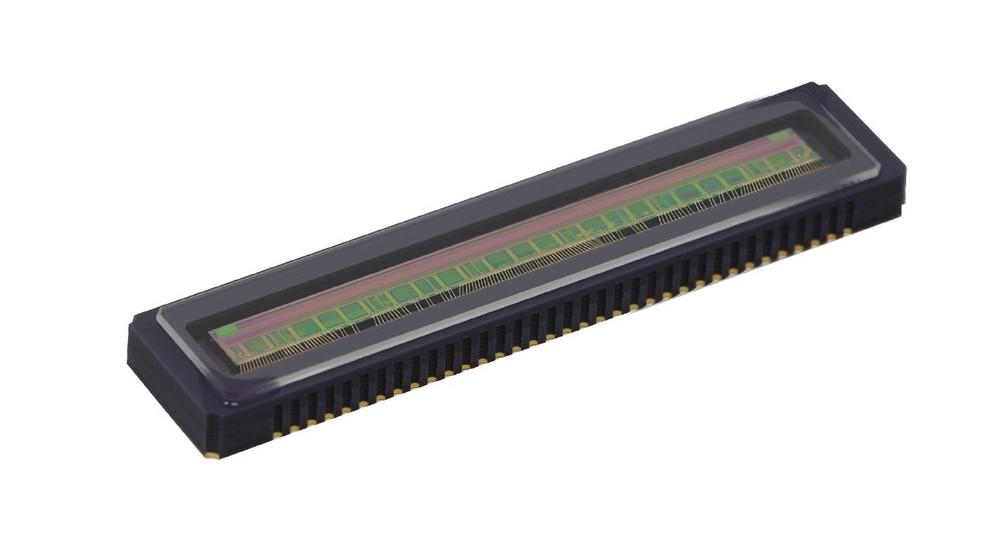

Tetra sensors are available in a 2k resolution with a 14 μm x 14 μm pixel size, or 4k resolution with a 7 μm x 7 μm pixel size at a max line rate of 128kHz aggregate. The mono models can be configured to output one, two, or four rows and the color models provide RGB and mono outputs. Using wafer level coated dichroic filters, the sensor also provides spectrally independent RGB and NIR outputs for multispectral imaging.
Based on a synchronized shutter design, Tetra provide low read noise and high dynamic range with true correlated double sampling (CDS). Each channel has its own exposure control, resulting in easy-to-perform white balancing.
The ceramic LCC package also offers high performance and high reliability over a wide range of operating temperatures. The sensor data ports have high signal integrity and simple interfacing for quick system integration.
Florian Julien, Director of the Machine Vision Team at Teledyne e2v said, “The sorting industry has started to upgrade its traditional technology from colour to multispectral imaging. With its unique RGB + NIR capability, Tetra has been designed as the next generation technology to enhance quality and safety in food sorting.”
Teledyne e2v is part of the Teledyne Imaging Group. Their innovations lead developments in healthcare, life sciences, space, transportation, defence and security and industrial markets. Teledyne e2v’s unique approach involves listening to the market and application challenges of customers and partnering with them to provide innovative standard, semi-custom or fully custom imaging solutions, bringing increased value to their systems.
For more information, visit imaging.teledyne-e2v.com
Teledyne Imaging is a group of leading-edge companies aligned under the Teledyne umbrella. Teledyne Imaging forms an unrivalled collective of expertise across the spectrum with decades of experience. Individually, each company offers best-in-class solutions. Together, they combine and leverage each other’s strengths to provide the deepest, widest imaging and related technology portfolio in the world. From aerospace through industrial inspection, scientific research, spectroscopy, radiography and radiotherapy, geospatial surveying, and advanced MEMS and semiconductor solutions, Teledyne Imaging offers world-wide customer support and the technical expertise to handle the toughest tasks. Their tools, technologies, and vision solutions are built to deliver to their customers a unique and competitive advantage.
