ODIN is a new, compact, and reliable deep UV resonant Raman instrument developed by IS-Instruments (IS-I) and TOPTICA for measurement of biopharma products.

The system combines the newly developed solid state diode laser TopWave 229 and a spatial heterodyne spectrometer integrated into a single instrument with a unique all-reflective backscatter Raman collection probe. Sample damage caused by extended laser exposure has been mitigated via the introduction of a dynamic sample positioning stage.

New deep-UV laser system, operating at 228.5 nm

The TopWave 229 is an exciting new choice for deep UV spectroscopists looking for a reliable laser that enables the user to focus on their application rather than worrying about the light source. With its short wavelength and an ultra-narrow laser linewidth (< 1 MHz ≙ 4 x 10-5 cm-1), the TopWave 229 offers the critical features to meet a challenge such as excitation source in the field of deep UV Raman and deep UV fluorescence spectroscopy.

The TopWave 229 was designed for a compact footprint and easy integration. Comfortable, hands-off operation is ensured by fully automated optimization routines for the internal opto-mechanics. In order to provide best reliability and consistent, diffraction limited beam quality (M² ≤ 1.3) the complete UV beam path is enclosed in a specially sealed compartment.

With its state-of-the-art laser controller, the TopWave 229 offers a wide range of operating options and systems integrators will appreciate the comprehensive command language that enables smooth integration with central control software.

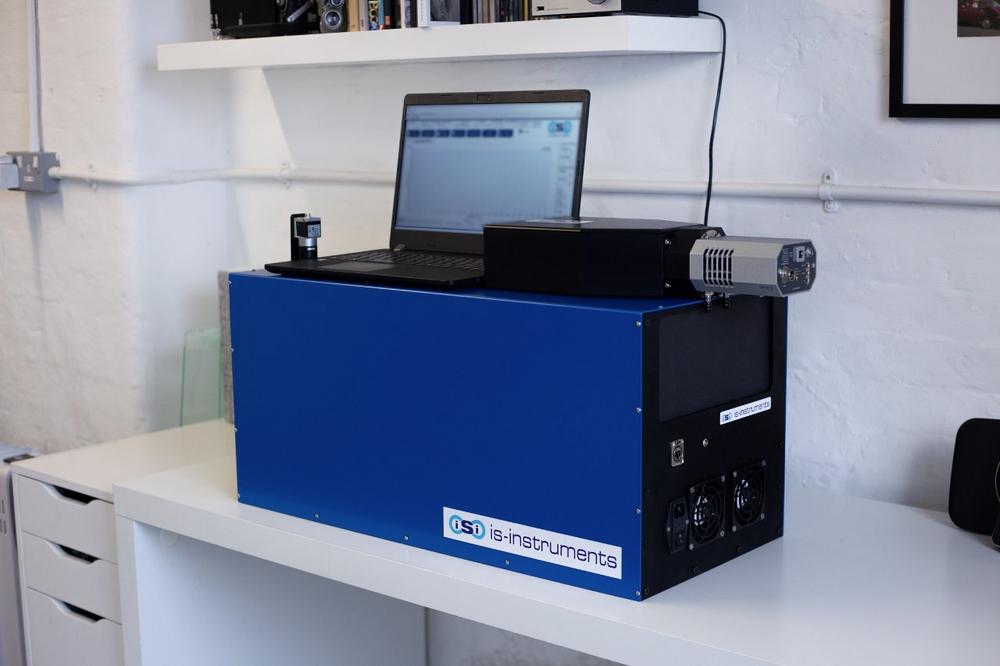

ODIN – a breakthrough in Deep UV Resonant Raman Instrumentation

A general description of the instrument is provided by  Michael  Foster,  William  Brooks  (both  IS-I)  and  Philipp  Jahn (TOPTICA) in this white paper: Download White Paper

The technical report describes a new deep UV Raman instrument developed by IS-Instruments (ISI) and TOPTICA, and its first application to the measurement of biopharma products.  The instrument performance is excellent acquiring spectra in a fraction of the time compared to existing systems, while its stability, compactness and ease of use are a game changer in terms of deep UV systems.  In this note, a general description of the instrument is provided together with a test campaign examining products including IgG and antibody fragments.

The instrument has been demonstrated to successfully capture the Raman spectra of a range of biochemical samples, including immunoglobulin (IgG) at varying concentrations, tryptophan, and a series of domain antibody (dAb) samples. The dAb samples were extracted at different stages of a pilot bioreactor manufacturing process and at varying dilutions. To the knowledge of the authors, this is the first time an observation of this type has been made.

“Deep UV resonant Raman has long been known to have the potential for being able to measure substances other spectroscopic techniques have not so far been capable of. Equally, the instruments currently available are extremely large, and expensive both to purchase and to maintain. This has made the technology accessible only to those organisations with physical space to house them and with significant budgets to operate them. Odin represents a departure from that as itis smaller and doesn’t have the internal mechanisms associated with high running costs.” – Dr Michael Foster, Co-Founder & Director, IS-Instruments

About IS-Instruments

ISI is a UK R&D company that designs and develops remote sensing instrumentation for use in hostile and high-temperature environments. Clients include National Grid, Xstrata, European Space Agency and ABSL Space Products. ISI was co-founded in 2010 by Directors Dr Michael Foster and Dr Jonathan Storey, with Nicholas Bantin. The Directors are renowned worldwide as experts in Optical filtering systems, Laser-enhanced remote sensing instrumentation, Photon Counting Techniques and High-precision interferometry.

Go to www.toptica.com for the Laser source TopWave 229

Go to www.is-instruments.com for the UV Raman Spectrometer ODIN

Visit us at analytica June 21–24, 2022 | Messe München  A1.301

Über die TOPTICA Photonics AG

TOPTICA has been developing and manufacturing high-end laser systems for scientific and industrial applications for 20 years. Our portfolio includes diode lasers, ultrafast fiber lasers, terahertz systems and frequency combs. The systems are used for demanding applications in biophotonics, industrial metrology and quantum technology.

TOPTICA’s products provide an ultra-broad laser wavelength coverage: 190 nm – 0.1 THz (corresponding to 3 mm). They enable a big variety of demanding applications in quantum optics, spectroscopy, biophotonics, microscopy, test & measurement, as well as materials inspection.

TOPTICA’s employees take pride in developing customized systems. In close collaboration with several universities and institutes, latest scientific discoveries are frequently incorporated into commercial products. With a global distribution network, TOPTICA provides exceptional service worldwide. With 400 employees TOPTICA earned revenue of 85 million Euro.
