PCBs, short for Printed Circuit Boards, are printed circuit boards that are nowadays installed in every electronic device such as mobile phones, radios or laptops. In order to meet the high demands of technical quality, reliable quality assurance is required.

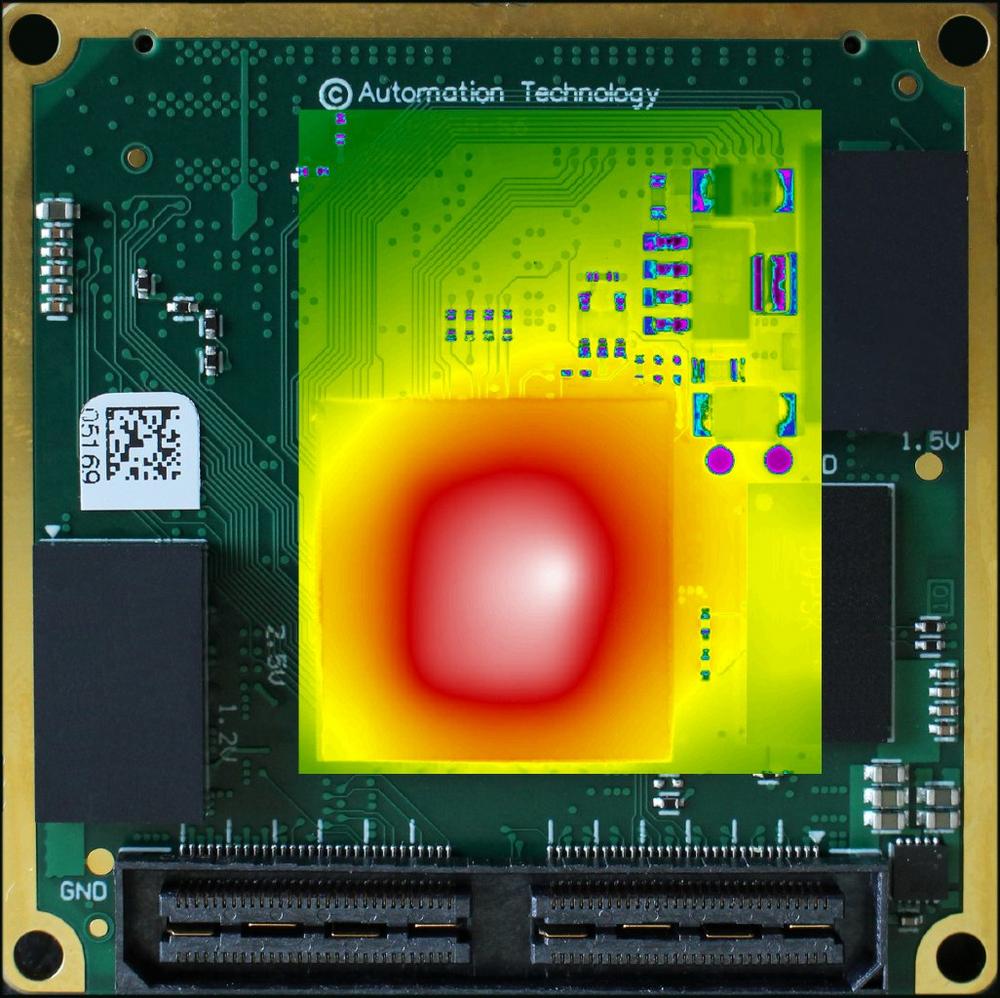

A simple and highly automatable way of quality assurance is via the temperature distribution of the components: the functionality of the PCB is guaranteed if the temperature distribution of the components exactly corresponds to the predefined standard values as soon as voltage is applied. With the help of its IRSX smart infrared camera, AT makes it possible to detect even small component defects by means of the produced thermal signature, which is displayed in the form of a temperature image. The app can be adapted to PCB inspection with minimal configuration effort, allowing PCBs to be assessed as good or bad based on their thermal signature.

The IRSX smart infrared camera sends the results as reliable signals to the process control system. For example, if a trace is broken, no heating is visible, whereas defects in a conductor or electronic component are visible as a temperature increase and so-called hotspot.

This gives IRSX users three unbeatable advantages:

  1. efficient production of PCBs by sorting out defective products in time
  2. reliable measurement results thanks to high-precision inspection
  3. minimal effort thanks to the IRSX’s integrated evaluation app

Moreover, if the PCB inspection involves extremely small areas, the IRSX can even be equipped with microscope optics.

Über die AT – Automation Technology GmbH

Automation Technology is a global market leader and fast-growing technology company in the field of special imaging sensor technology based in Bad Oldesloe, conveniently located between Hamburg and Lübeck. We develop and produce intelligent infrared cameras, high-precision 3D sensors and unique sensor solutions that are used in industrial process automation and monitoring and inspection tasks worldwide. With over 20 years of application experience in a wide range of industries from automotive to plastics processing to electronics, we offer innovative products that are optimally tailored to practical applications and are reliable to the highest degree. A dense network of global sales and service partners ensures individual advice as well as perfect service and support for our international customers.
