You are searching for a D-SUB quick locking system which enables a quick and easy locking and unlocking without additional tools? That allows a locking even at poorly visible device interfaces due to the audible and tangible " click"? You want to upgrade an existing system with quick release Hoods?

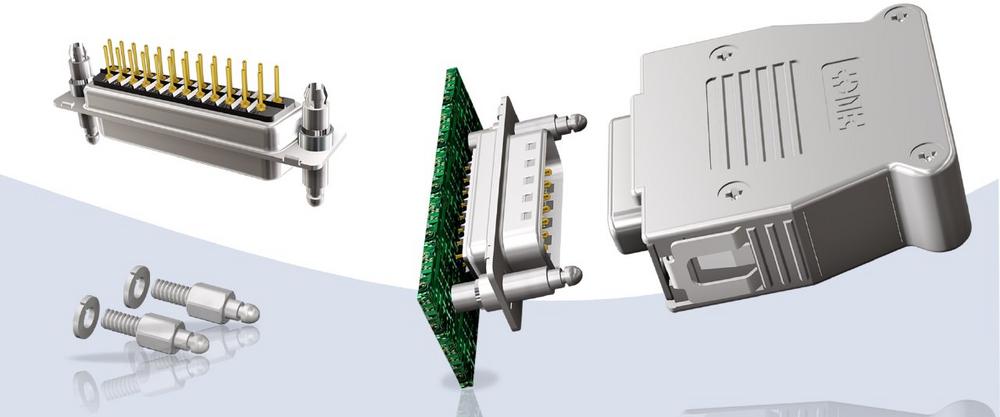

The CONEC SnapLock locking system consists of D-SUB connectors and D-SUB hoods allowing quick and safe locking without any additional screwing. A spring-loaded clip integrated in the hood locks in place with the locking bolt mounted to the mating connector and ensures a quick and safe connection. The locking bolt for the connector is available in two variants:

Firmly integrated in the connector, for example with a standard thread insert. The advantage is that the locking bolts cannot get lost and do not have to be installed in a second work step. The connectors may be used in the circuit board directly after mounting. As kit for subsequent mounting on connectors for rear panel mounting or as upgrade kit for existing systems, to be used with the CONEC SnapLock hood.

Locking of the locking mechanism is indicated by an audible and tangible click. Due to the high retaining force, safe locking of the connector is provided for many different applications.

The plastic hoods are available in sizes 1 – 5, metallised or black. The material is flame-resistant in accordance with UL 94 V0. In addition to the hoods we offer appropriate D-SUB connectors (9 – 50 pos.) with integrated locking bolt. The locking bolt is tightly mounted to the connector shell and thus cannot get lost. Further on there is an option to make a hood-to-hood connection . This is done via a connection bolt kit. With a small plastic plate, the connection can be secured from one side against detaching (with one locking plate per side).

Another supplement is the upgrade kit for existing D-SUB systems with threaded insert UNC 4-40. The kit includes two locking bolts with washers. These are screwed in the threaded insert and ensure safe use of the CONEC SnapLock hood.

Advantages

  • Quick and easy locking and unlocking
  • Secure locking / high retaining force
  • Can be mounted faster than a standard screw lock
  • Shock and vibration resistant
  • Models available in plastic black and plastic metallized
  • Front & side cable entries
  • Hood-to-hood connection via locking kit
  • Connector with integrated bolt
  • Integrated bolt cannot get lost
  • Kit for back panel mounting and upgrade of existing systems

Fields of application

  • Drive technology
  • Automation technilog
  • Housing and device connection
  • Communication technology
  • Mechanical Engineering
  • Process automation and Process control
  • Transport technology
Über die CONEC Elektronische Bauelemente GmbH

For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.

The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.

As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.

In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.

CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Reblublic, Poland and Slovakia.

The product portfolio includes connectors of the following categories:

• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions

The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
