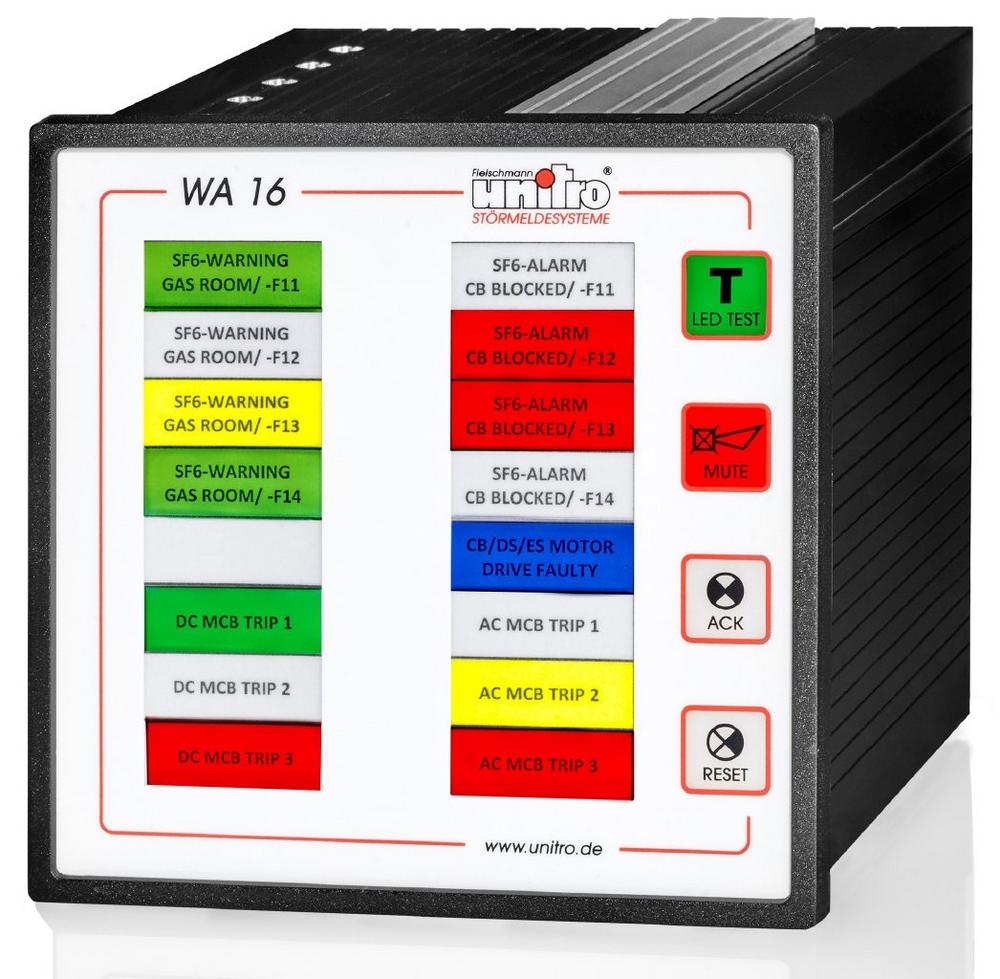

Optical – acoustic fault signaling system:
Compact aluminum front installation housing 144x144x160mm
16 signal inputs 24/60/110/220V AC/DC, 2-pole. Resolution =>1ms.
Large brilliant 5-color LED signal windows, for selective display.
Integrated small horn. With 4 function buttons on the front.
2×16 output relays, all-pole NO contacts.
Parameterizable via USB:
Selectable colors, red, green, blue, yellow, white.
Annunciating functions following DIN 19235 and US / ISA 18-1
Response delay and assignment of the output NOCs.
Decentralized substation:
Data logging with signal storage, in chronological order in real time with SNTP sync.
Parameterizable count and time window for predictive maintenance.
Network-capable via TCP/IP, or LON bus.
Process visualization in combination with SISSY SCADA system.
