These small power packs have an output power of 25W up to an ambient temperature of +50°C. With appropriate derating (0.8 @ TA=+70°C) the parts can be used up to +80°C without additional fan cooling.
All devices have a wide input voltage range of 85 to 264VAC and are overload, short-circuit and overvoltage protected. Available single output voltages are 5V, 12V, 24V and 48V. Customer-specific variants are also possible on request.
The efficiency is 90% and the no-load input power below 0.3W.
The parts complying to the latest safety standards of EN/IEC/UL 62368-1 for audio, video, IT and telecommunication technology and the EMC standards of EN55032 (radiated emissions) and EN61000-3-2/EN61000-3-3 (harmonics).

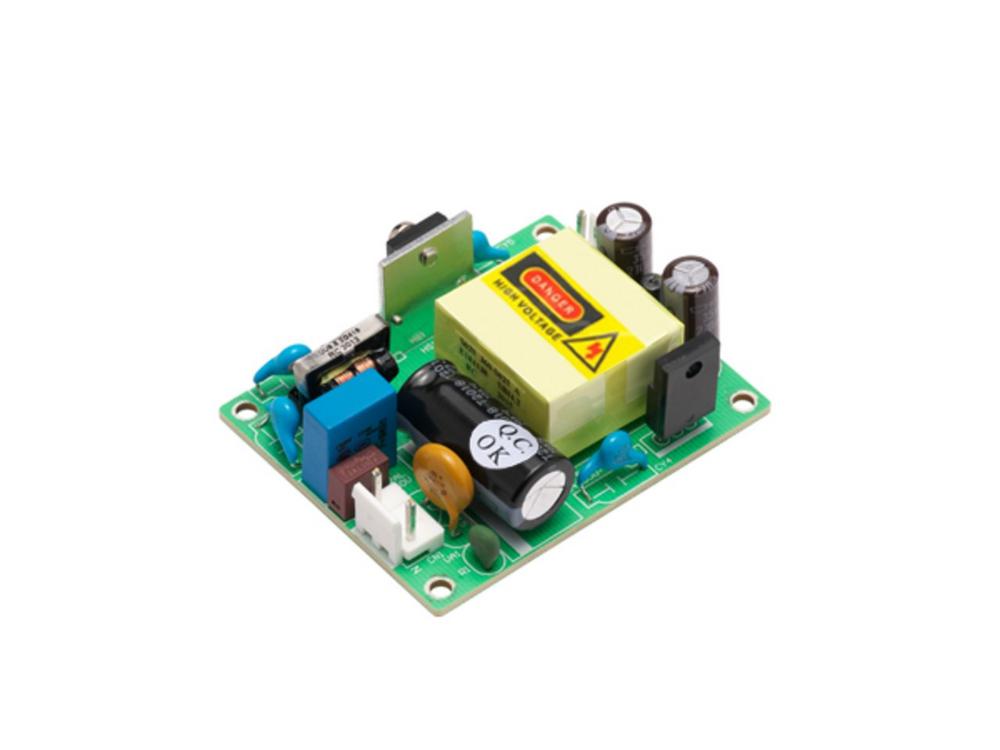

The dimensions are 2“ x 2.5“ with a height of less than 1“ (63.5mm x 50.8mm x 24.6mm). For installation, Magic Power offering either a standard open frame or a PCB-mountable version.
Further information under www.trs-star.com.
