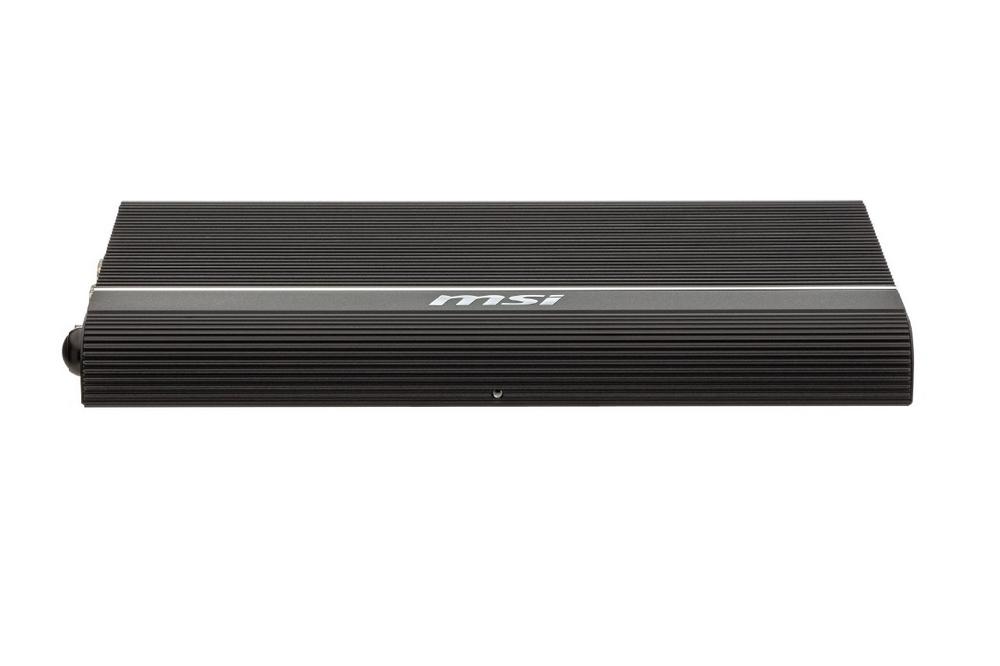

Fanless industrial and digital signage PC

As it should be for a genuine WINDBOX, the new III Ultra model also meets all the requirements for being called an industrial PC. Thanks to its metal housing, the passive cooling system and a temperature range of -10°C to +50°C, the system can be used in industrial environments without any problems.

But what about the inner values of our new product? The 12th generation Intel® Core® i5 CPU scores with 2 performance cores with up to 4.4 GHz and 8 efficient cores with up to 3.3 GHz. This is accompanied by the integrated Intel® Iris® Xe graphics, which, in combination with 2 HDMI 2.0 and 2 DisplayPort, enables content to be played in 4K resolution on up to four screens at the same time. In this way, the WINDBOX III Ultra also makes a perfect digital signage PC.

Flat design with all important connectors

As the successor to the WINDBOX III Evo, it makes sense for the system to have the same dimensions of 285x196x30 mm (WxDxH). Like that, it can easily be integrated into existing applications. The flat housing still offers enough space for various connections: In addition to the four video outputs, there are also a total of 5 USB interfaces (3x USB 3.2 Gen and 1x USB 2.0), 2x COM RS232/422/485 and 2x 2.5 GbE LAN. A wall mount is always included in the scope of delivery.

Connectivity and operating system options

The WINDBOX III Ultra can optionally be equipped with Wifi and has 4 antenna connections for this case. When it comes to the operating system, you can choose between Windows 10 in the versions Home, Pro and IoT, as well as Windows 11 in the Home and Pro versions.

The WINDBOX III Ultra is perfect for anyone looking for a versatile PC. Whether as a digital signage player or as a partner in industrial applications: The system meets your requirements. Due to the flat design even if little space is available. The Mini-PC is available from now on and can be configured and ordered according to your requirements at www.spo-comm.de/en.

Highlights and all technical data at a glance:

  • CPU: Intel® Core® i5-1235U with 2 Performance Cores 1,3 GHz (max. 4,4 GHz) and 8 Efficient Cores 0,9 GHz (max. 3,3 GHz)
  • GPU: Intel® Iris® Xe 
  • RAM: 4 up to 64 GB SO-DDR4  
  • 2x SSD: 2x M.2 NVMe or 1x 2,5“ SATA and 1x M.2 SATA
  • Max. resolution: 4096 x 2304 @ 60Hz (4K) 
  • 4 independent displays 
  • Dimensions (W x D x H): 285 x 196 x 30 mm 
  • Wall mount included 
  • Ambient conditions: -10°C up to +50°C at 10-90% non-condensing humidity

Connectors: 

  • 2x USB 3.2 Gen 2, Type A
  • 1x USB 3.2 Gen 2, Type C
  • 2x USB 2.0, Type A
  • 2x HDMI 2.0 
  • 2x DisplayPort 1.4a 
  • 1x Audio connector (LINE-OUT)
  • 2x 2,5 GbE LAN
  • 2x COM (RS-232/422/485)
  • WiFi optional  
Über die spo-comm GmbH

spo-comm offers Mini-PC solutions for industry and trade in Germany and Europe with special expertise for digital signage. The company was founded in 2003 by its CEO is Michael Sporrer. The Mini-PC specialist offers a wide range portfolio from hardware, software and services up to complete supply chain management – always with a perfect fit. Thanks to the great customer support and technical teams spo-comm carefully meets the customer’s requirements. spo-comm has a dense network of hardware partners and is one of the most important of MSI IPC partners in Europe. 

For more information visit us at www.spo-comm.de 
