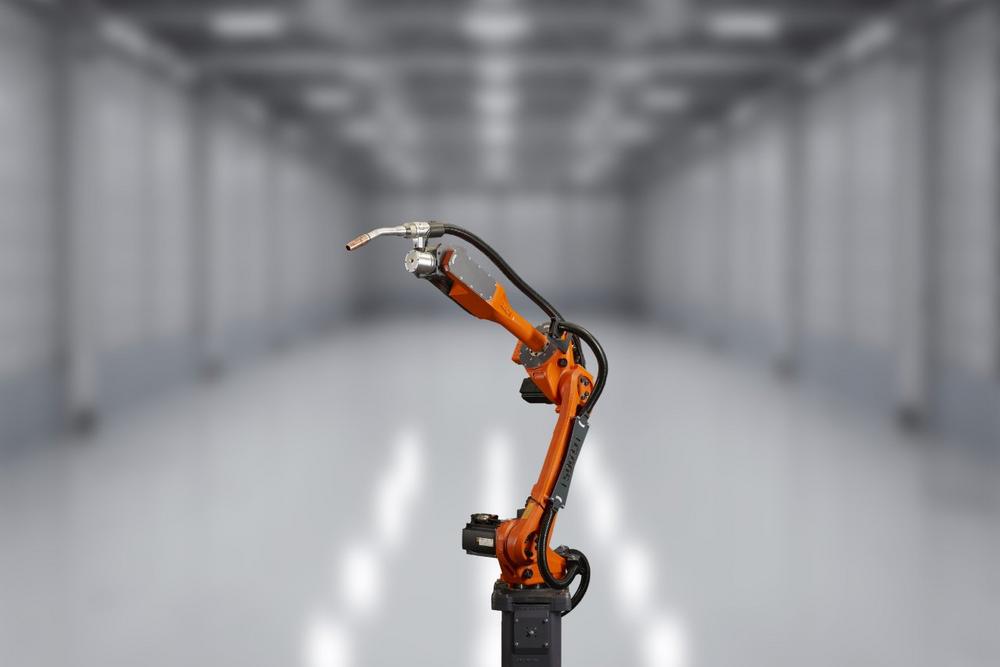

From the operating software to the servo drive, the entire automation of the six-axis articulated robot comes from Baumüller. The robot is driven by six DSH1 high-precision servo motors. This motor series was developed specifically for applications with the highest standards for quality and smooth operation. Typical application fields are welding robots, for example. The multi-axis controller b maXX 5800 controls the axes. The compact controller for up to six drive axes can be configured individually and fully flexibly. This means that users can freely combine axis powers in the controller. They can also integrate the exactly right axis power for every single axis. The result is a device that meets the requirements of their applications perfectly. In addition, the mechanical engineer benefits from a hardware-independent control software. The customer gets an efficient overall system and a shortened time-to-market thanks to the coordinated components from a single source.
The new QIROX robot QRC-290 as well as the welding robot Qirox QRH-280, also developed by Cloos and Baumüller, will be on display at this year’s SPS IPC Drives at the Baumüller trade fair stand. Both companies Cloos and Baumüller have already been working together since 2016. Cloos provides highly-specialized procedural expertise and Baumüller implements this with pioneering automation solutions.
Global Oscilloscope via Tablet
At the trade fair stand, the new QIROX QRC-290 will exhibit the high level of dynamics and precision of the welding process by precisely running the contour of a complex workpiece at a high speed. The robot’s motion profile and the current, voltage, speed and other process-related data are recorded via a global oscilloscope and are displayed in parallel. Trade fair visitors can view the welding process data in real time on a tablet. The time-synchronized representation of the values increases the robot’s real-time diagnostic capability and simplifies the documentation of complex welding processes for production optimization and benchmarking. In addition, this facilitates the commissioning and service measures.
Produce flexibly thanks to smart networking
Another exhibit consists of two networked handling and robot systems. These will show at the trade fair stand how networking is used to achieve production optimization. The palletizing process of the 3-axle material handling system and the welding of the robot occurs in one process. The communication occurs via a Euromap interface, which is standardized in the plastics industry. Both systems are complete solutions from Baumüller, from the control software to the drive. Baumüller thus shows how machine modules can be optimally automated for the respective production process and also flexibly automated depending on the application. The individual modules can easily be combined to form complete machines and systems or also integrated into new or existing systems.
Visitors can convince themselves of the intuitive operation of the Baumüller visualization and the advantages of web capability directly at the exhibits. The user can then conveniently access the visualization of the production data on a smartphone or tablet whenever needed.
Based in Nuremberg, Baumüller is a leading manufacturer of electric automation and drive systems. Around 1,800 employees are planning, developing, fabricating and installing intelligent system solutions for mechanical engineering and e-mobility at six production locations and 40 branches worldwide – from the user interface to motion control software as per PLCopen, software modules and controls all the way to converters, electric motors and the entire service program for automation solutions.
Baumüller’s full range of services also includes the areas of service, installation, assembly and relocation. Baumüller is one of the leading automation partners in mechanical engineering worldwide.
